16Amp 300V 2x5 Position Terminal Block Distribution Module. OONO D-1655GP
$21.43
Skip to product information
16Amp 300V 2x5 Position Terminal Block Distribution Module. OONO D-1655GP
$21.43
Shipping calculated at checkout.
Description
About This

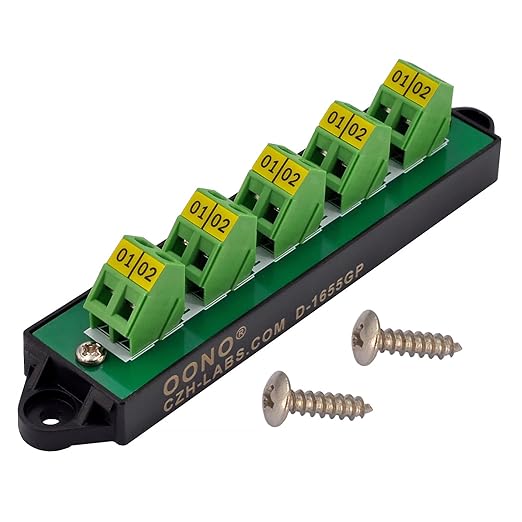

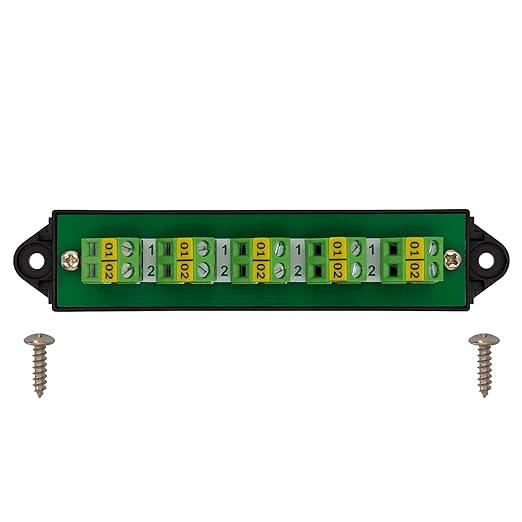

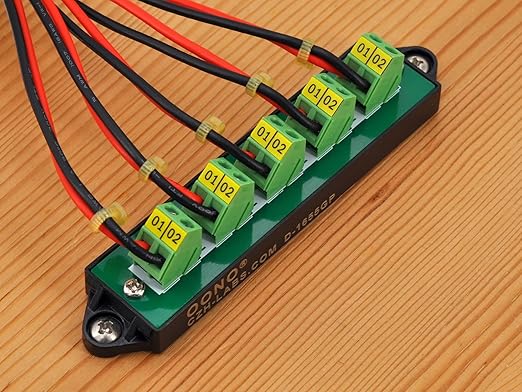

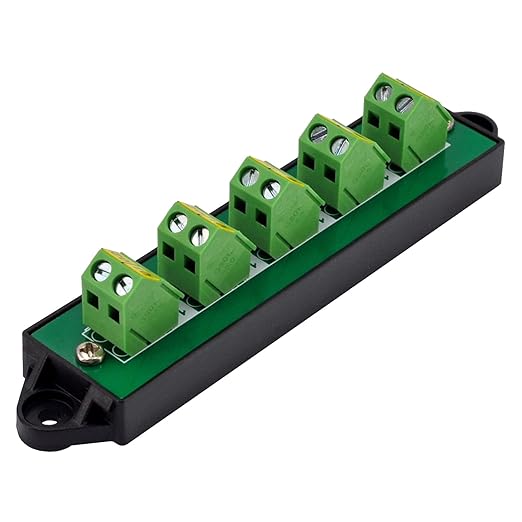

- 16Amp 300V 2x5 position screw terminal block distribution module.
- Rated current 16 Amp(per pole total input or output), Maximum voltage 300V.
- Screw terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Overview
- Current Rating : 16 Amps
- Gauge : 12.0
- Connector Type : Screw
- Number Of Contacts : 10
- Mounting Type : PCB Mount

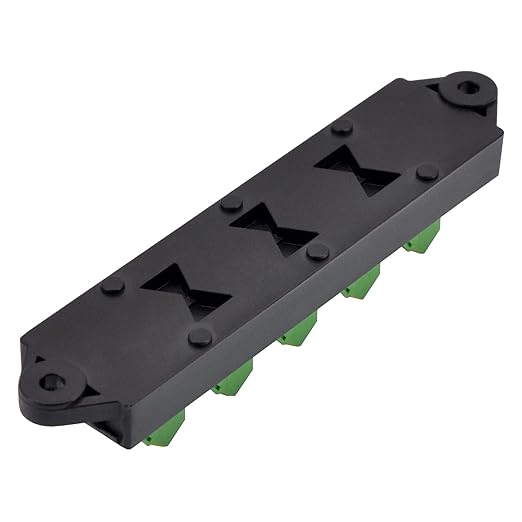

- Material : Polycarbonate (PC)
- Brand : OONO
- Number Of Poles : 10

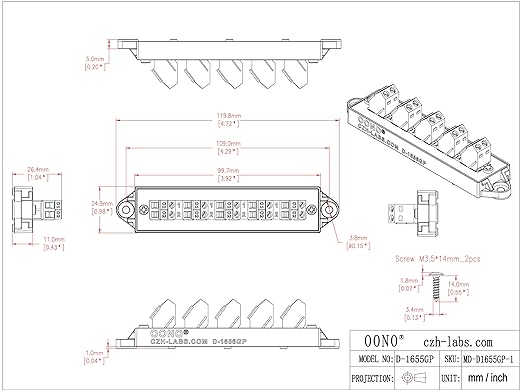

- Product Dimensions : 4.72"W x 0.97"H
- Specification Met : RoHS
