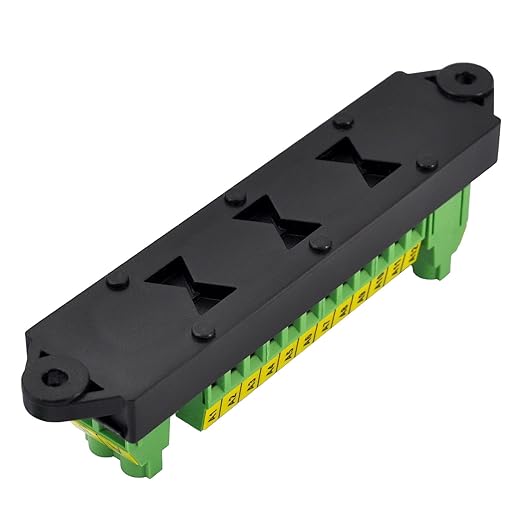

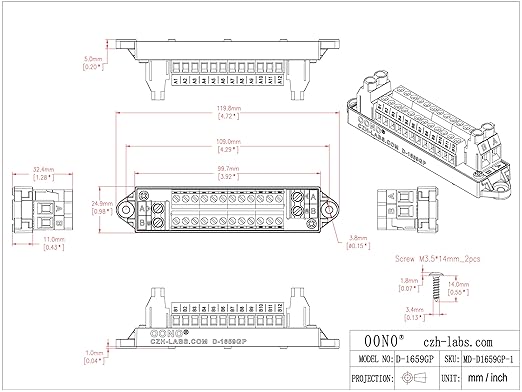

30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
$23.08
Skip to product information
30Amp 300V 2x12 Position Terminal Block Distribution Module. OONO D-1659GP
$23.08
Shipping calculated at checkout.
Description
About This

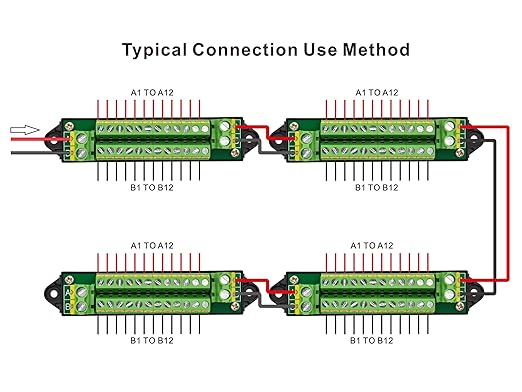

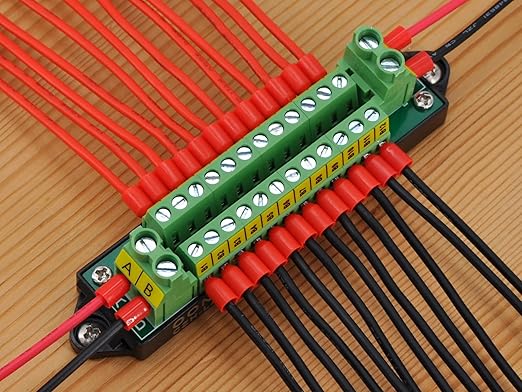

- 30 Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
- Rated current 30 Amp(total input or output), Maximum voltage 300V.

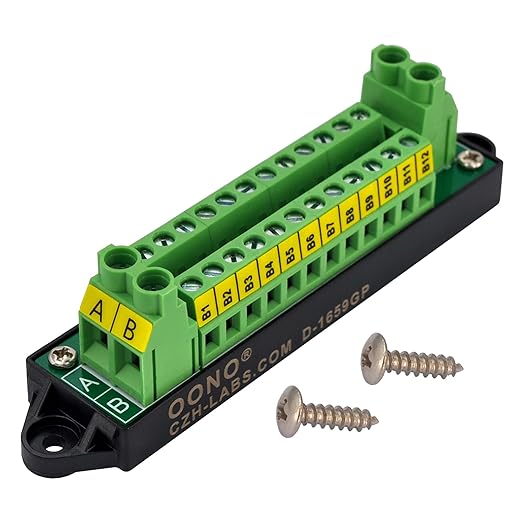

- A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Rated current 30 Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

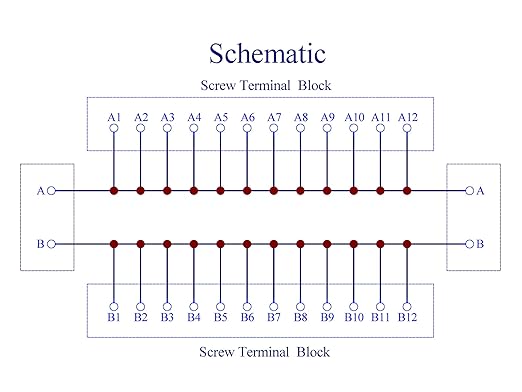

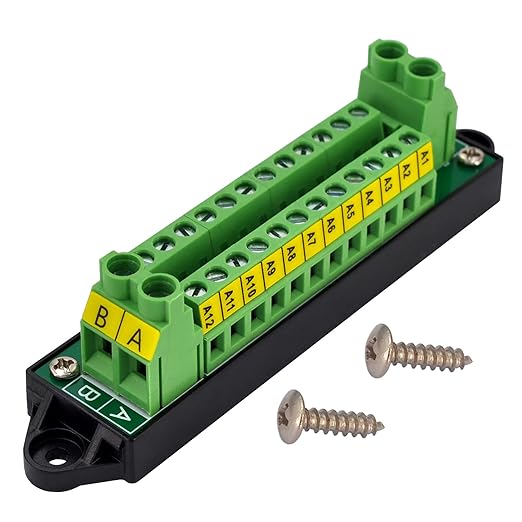

- A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16 Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

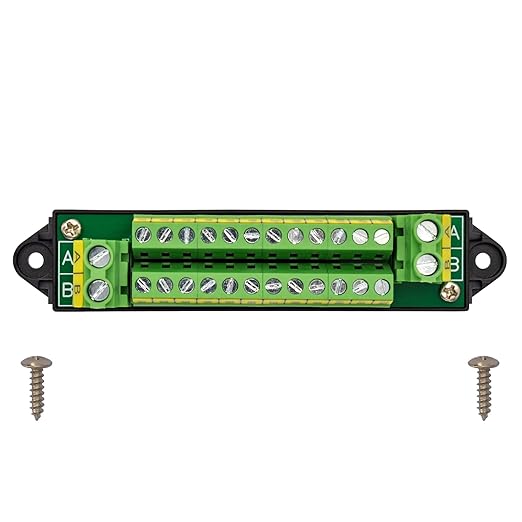

- UL CE CQC certified terminal blocks, FR-4 glass fiber PCB. Mounting base: PC (Polycarbonate plastic). Screw: 304 stainless steel.
Overview
- Current Rating : 30 Amps
- Item Pitch : 7.62 Millimeters
- Gauge : 0.01
- Connector Type : Screw
- Number Of Contacts : 24
- Mounting Type : Panel Mount
- Material : Polycarbonate (PC), Stainless Steel
- Brand : OONO
- Voltage : 300 Volts
- Number Of Poles : 24
