UL Listed 6 Pcs 8-Amp Electromagnetic Relay 24V DC Relay DPDT 2NO 2NC 8Pin Socket Base with Indicator Light Module and Test Button
$75.88
Skip to product information
UL Listed 6 Pcs 8-Amp Electromagnetic Relay 24V DC Relay DPDT 2NO 2NC 8Pin Socket Base with Indicator Light Module and Test Button
$75.88
Shipping calculated at checkout.
Description
About This

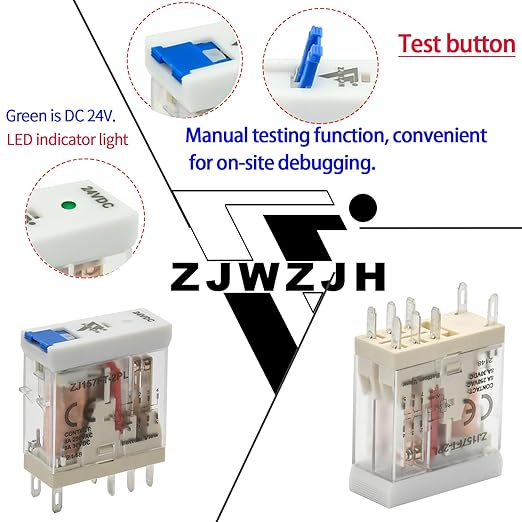

- [ UL Listed ] Our 24V Relay Power Relay through UL listed and CE listed. Relay's point dynamic test key can be used to manually change the contact state.

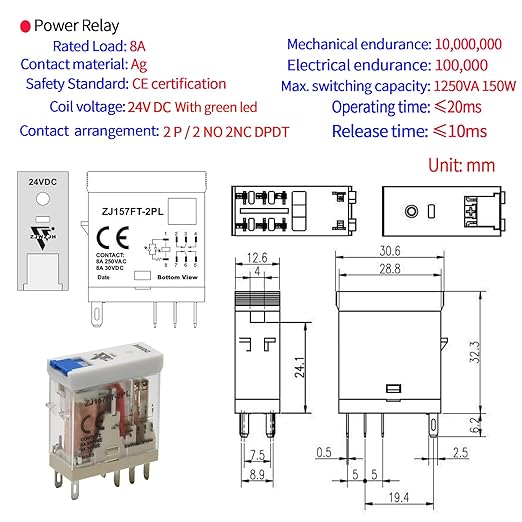

- 24VDC Relay;Contact : 2-Ways DPDT, 2Normally Closed + 2Normally Open 2 Poles; rated carry current: 8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
- The relay is equipped with a green LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.

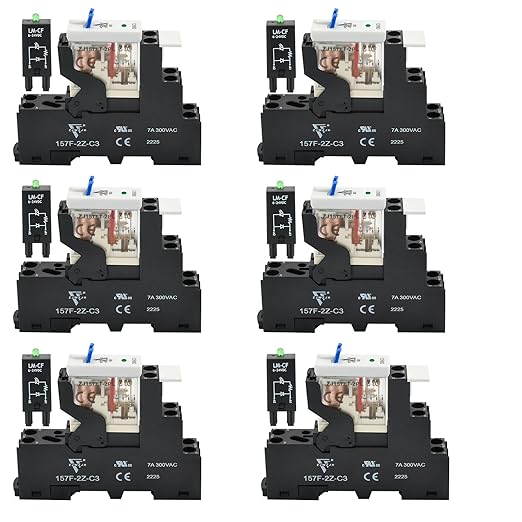

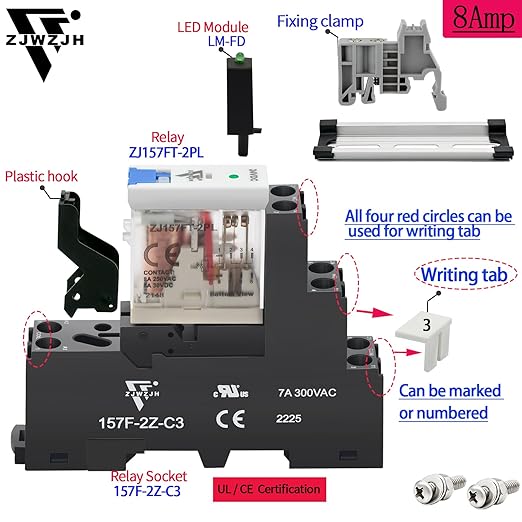

- Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Overview
- Connector Type : Screw
- Contact Material : Silver Alloy
- Contact Type : 2 Normally Open
- Current Rating : 8 Amps
- Mounting Type : DIN Rail Mount
