6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification

6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification

$82.48
Skip to product information
6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
1/6
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
  • 6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification
6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification

6Pcs 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V AC SPDT 1NO 1NC Socket Base with LED Light UL Certification

$82.48
Shipping calculated at checkout.
Description

About This

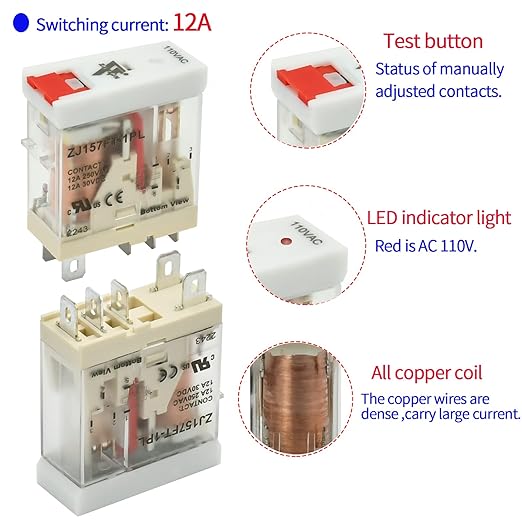

  • Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

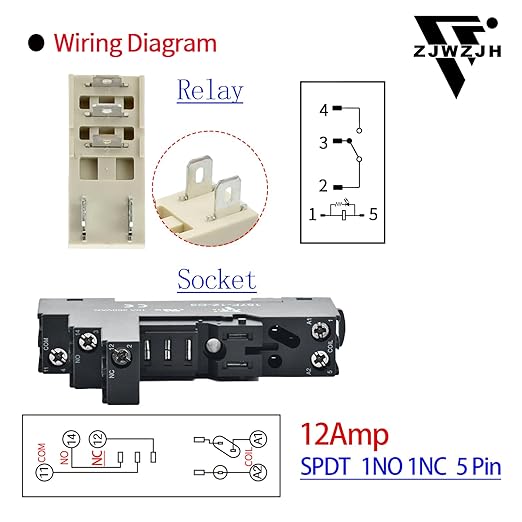

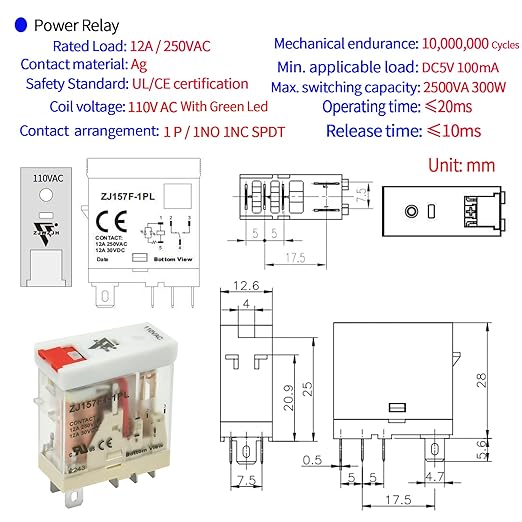

  • Rated carry current:12 Amps; Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:1NO1NC DPDT 1 Poles.

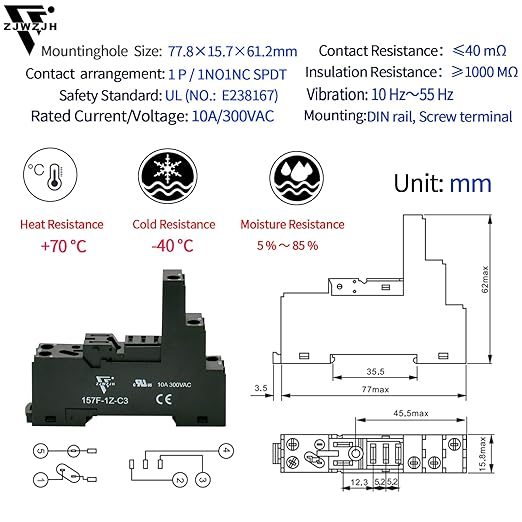

  • Relay voltage: 110V-120V AC, LED light module: 110-230V AC/DC. Socket Safety Standard:UL (NO.: E238167) ; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

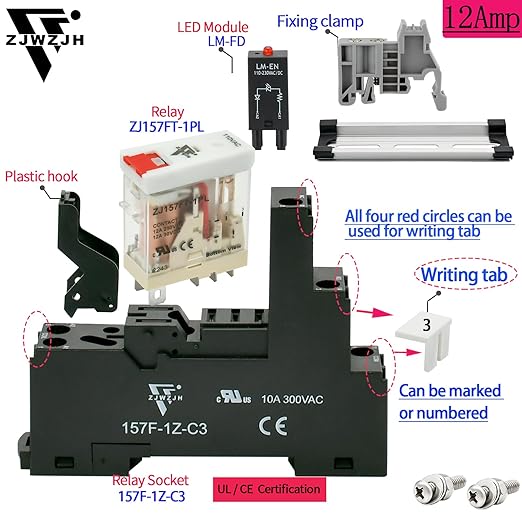

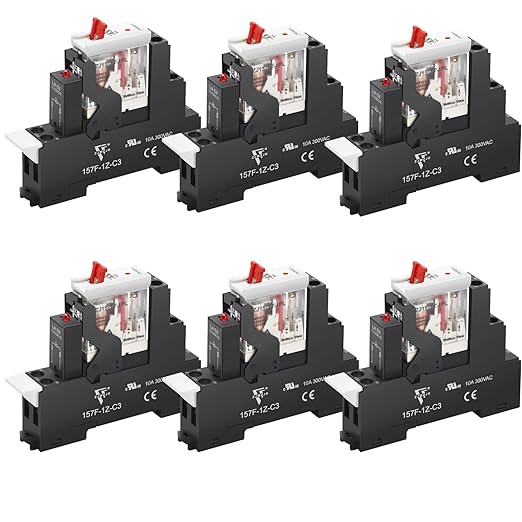

  • Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
  • The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Overview

  • Connector Type : Screw
  • Contact Material : Silver
  • Contact Type : Spdt
  • Current Rating : 12 Amps
  • Mounting Type : DIN Rail Mount
