DIN Rail Mounting 8-Channel Multifunctional Bistable Relay Module
$163.35
Skip to product information

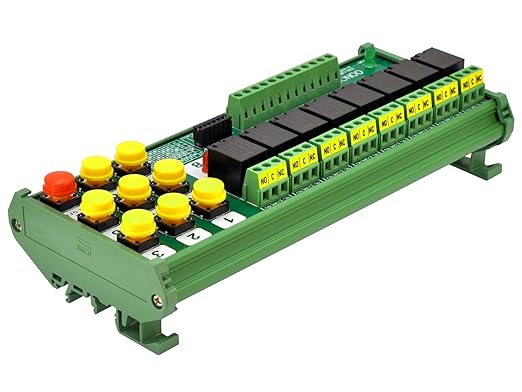

DIN Rail Mounting 8-Channel Multifunctional Bistable Relay Module
$163.35
Shipping calculated at checkout.
Description
About This

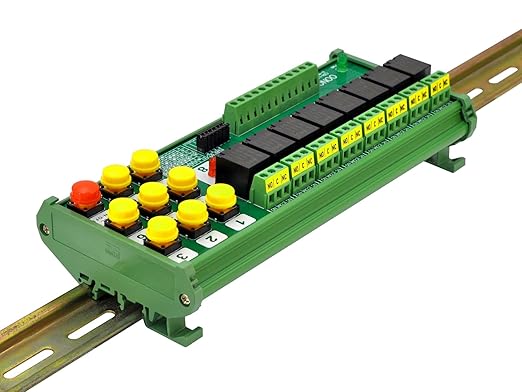

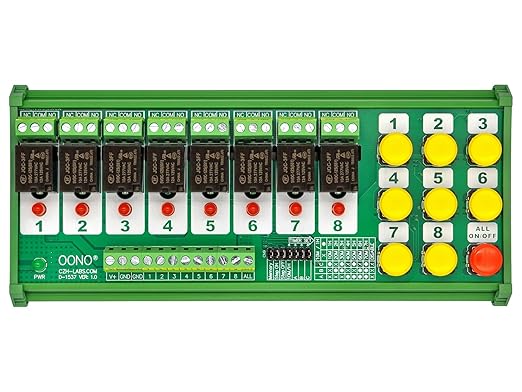

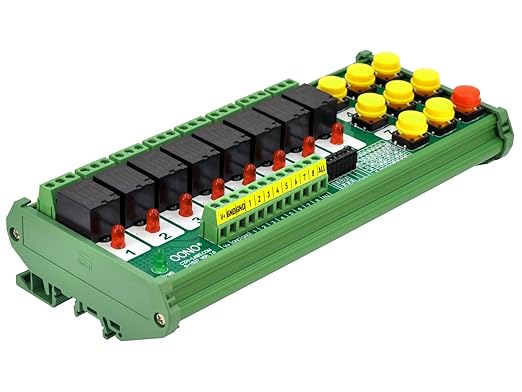

- This is an easy-to-use DIN rail mounting 8-channel SPDT relay control module that can realize the application of general relay ON/OFF control functions without mastering programming technology. The module comes with a keyboard that can directly control the corresponding relay channels, and can also control all relays to be closed or connected with one button.
- Operating Voltage: DC 7 to 32V

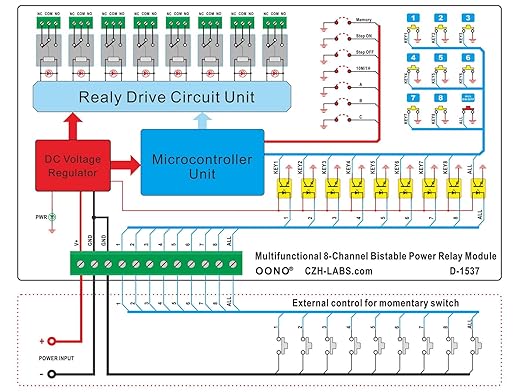

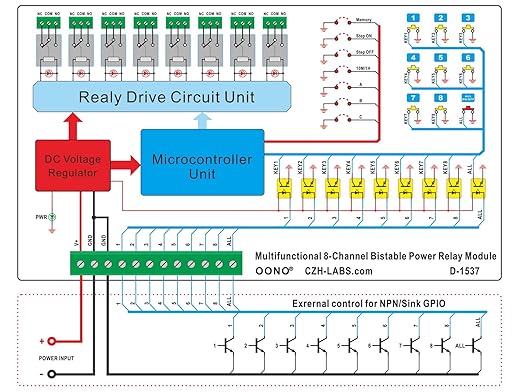

- Support external control for momentary switch. Support external control for NPN/Sink type controller ports.

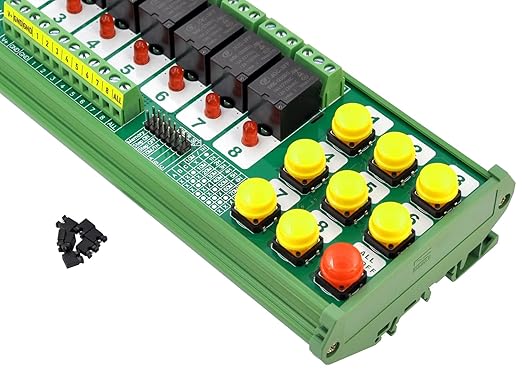

- Support pin-jumper to enable/disable power-off memory function. Support pin-jumper to enable/disable Step-on and Step-off function. Support pin-jumper to enable/disable all relay timer-off function, and selection time-off delay 10 to 70 minutes or 1 to 7 hours.

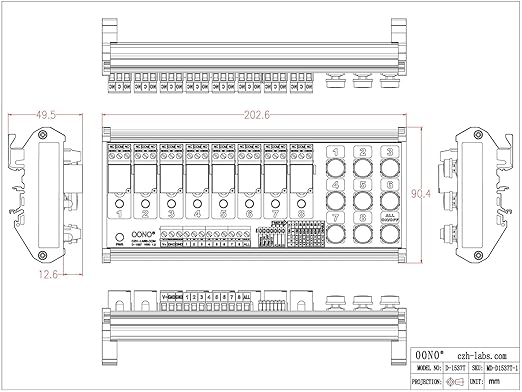

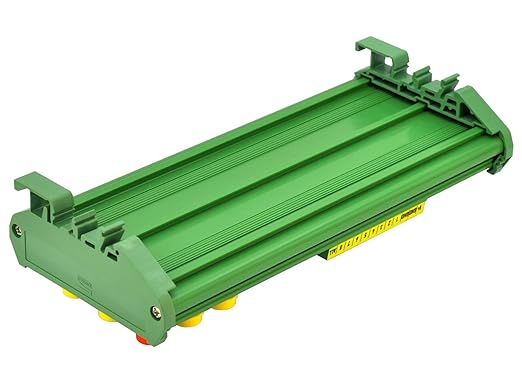

- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. UL CE certified nylon material mount carrier. FR-4 fiberglass material UL 94-V0 certified PCB. UL CE CQC certified terminal blocks.
