UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw

UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw

$26.38
Skip to product information
UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
1/8
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
  • UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw
UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw

UL Listed 2Pcs Electromagnetic Relay for PLC;24V Relay Din Rail; 24VDC and 24VAC Both; SPDT with Push in Socket 6A 250VAC No Screw

$26.38
Shipping calculated at checkout.
Description

About This

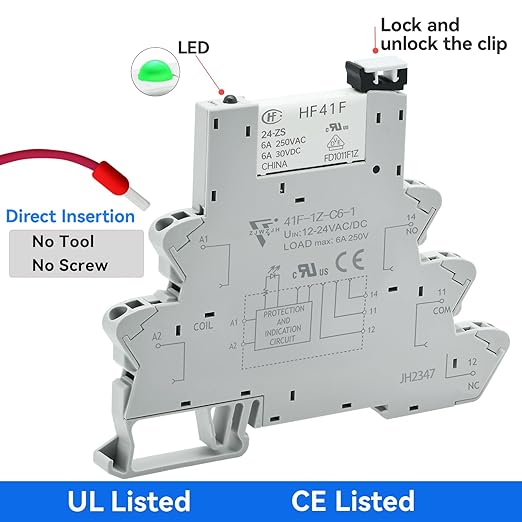

  • 【Certifications】 Electromagnetic Power Coil Relay through UL and VDE certification, Socket through UL / CSA and CE certification. Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

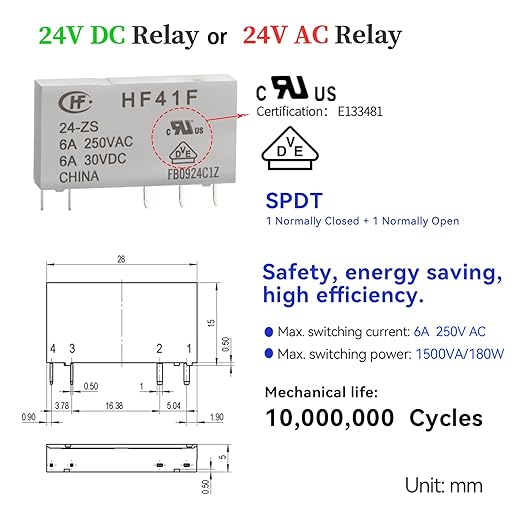

  • 【Electromechanical Relays】Coil Voltage: 24V DC/24V AC, Both DC and AC are universal; Contact : 1 Form C(1NO 1NC), SPDT; Number of Terminals : 5 Pins; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

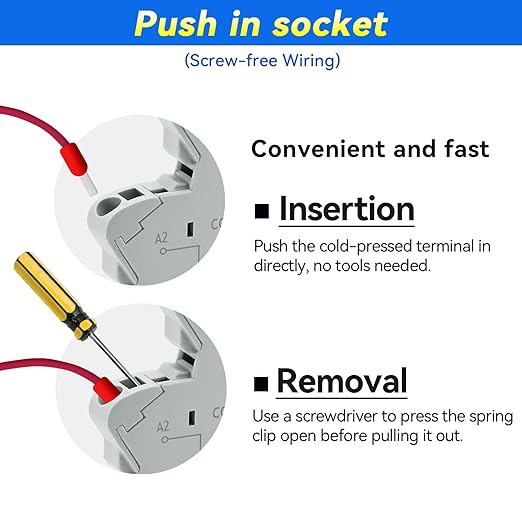

  • 【 Push-In Socket】★[ Installation]: Insert the cold-pressed terminal wire directly into the round hole (Screw-free wiring). ★[ Removal ]: First, poke the square hole with a screwdriver, and then the wire can be easily removed.

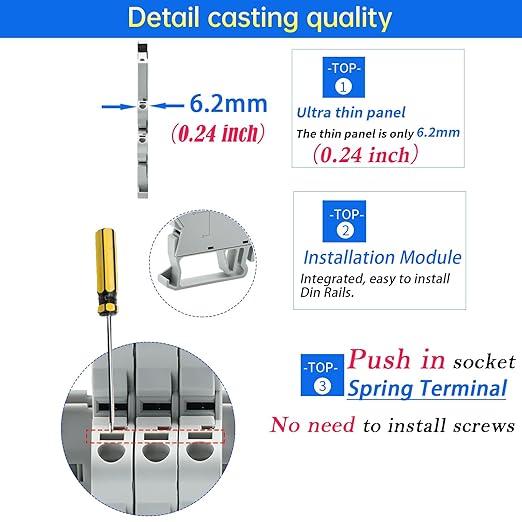

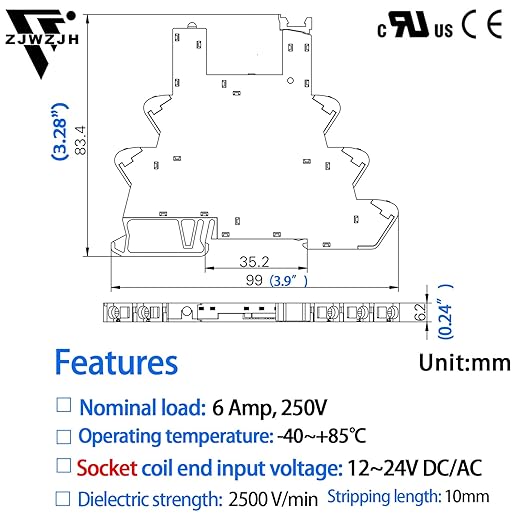

  • 【Dimension】Relay Slim size (width 5mm), Outline size:28*5*15mm; Socket Model: 41F-1Z-C6, Size : 99*83.4*6.2mm / 3.9"*3.28"* 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

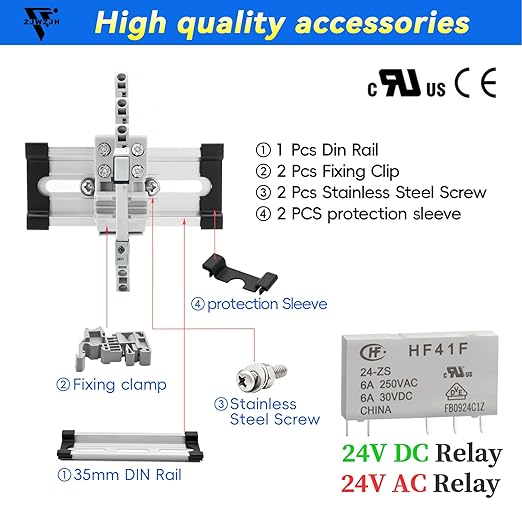

  • 【Package】Package Content : 2× Power Relay; 2× Relay Socket Base; 1× DIN Rail;2×Fixing Clip;2×Screw.Ambient temperature: -40℃ ~ 70℃.
  • PLC Relay Systemwith Push-In Technology. Socket: Spring Loaded, Cage Clamp, Push in Socket, DIN rail mounting, with finger protection device. Apply to relay the rated voltage: (12-24)V AC/DC.

Overview

  • Connector Type : Push in Socket
  • Contact Material : Agsno2
  • Contact Type : 1no 1nc
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
