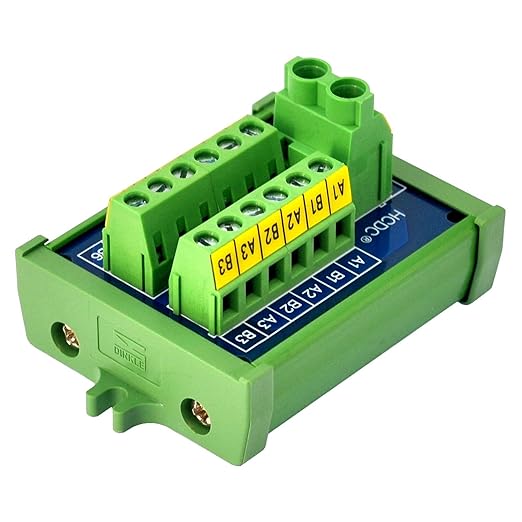

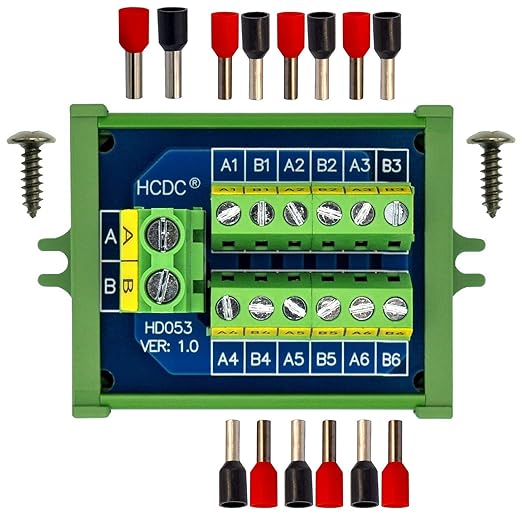

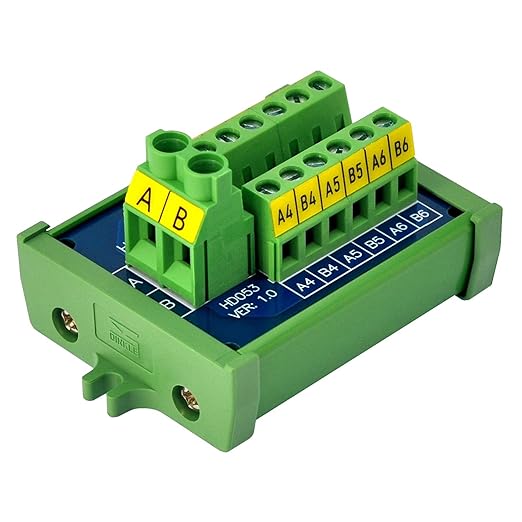

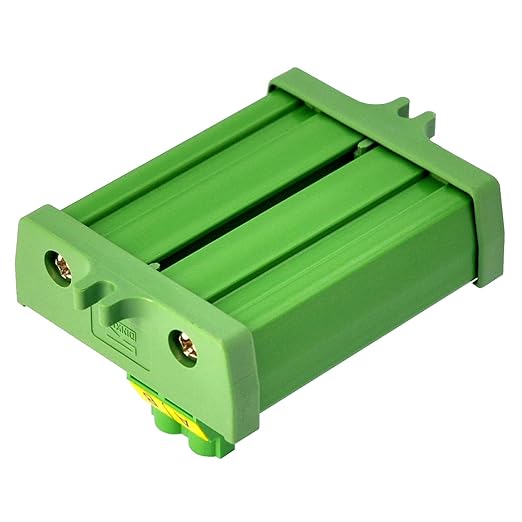

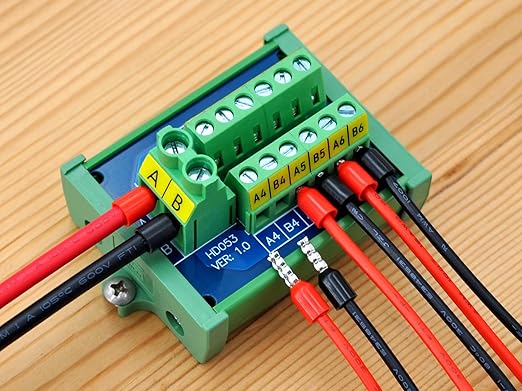

Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module
$24.75
Skip to product information
Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module
$24.75
Shipping calculated at checkout.
Description
About This

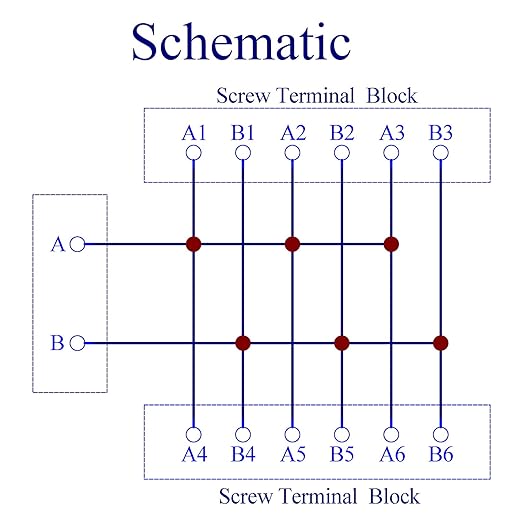

- Screw mount 30Amp 48V 2x6 position screw terminal block distribution module.
- Rated current: 30 Amp(total input or output). Maximum voltage: 48V.

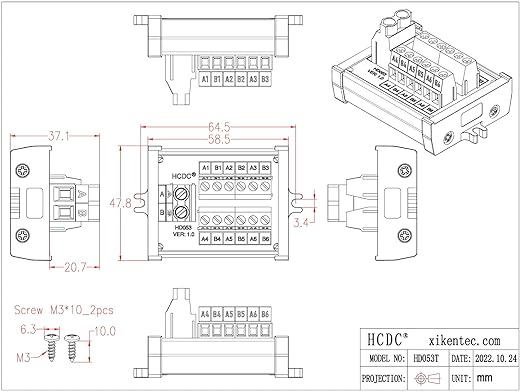

- A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- High quality fireproof nylon material mount carrier(UL CE certified, not China low quality carrier). UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.
Overview
- Current Rating : 30 Amps
- Item Pitch : 7.62 Millimeters
- Gauge : 1
- Connector Type : Screw
- Number Of Contacts : 6
- Mounting Type : screw mount
- Material : Nylon
- Brand : HCDC
- Voltage : 48 Volts
- Number Of Poles : 6
