3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket

3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket

$37.75
Skip to product information
3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
1/7
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
  • 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket
3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket

3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light, DIN Rail, Ultra Small and Thin Socket

$37.75
Shipping calculated at checkout.
Description

About This

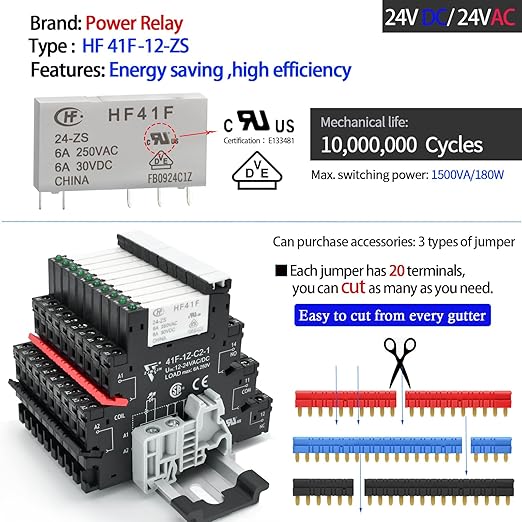

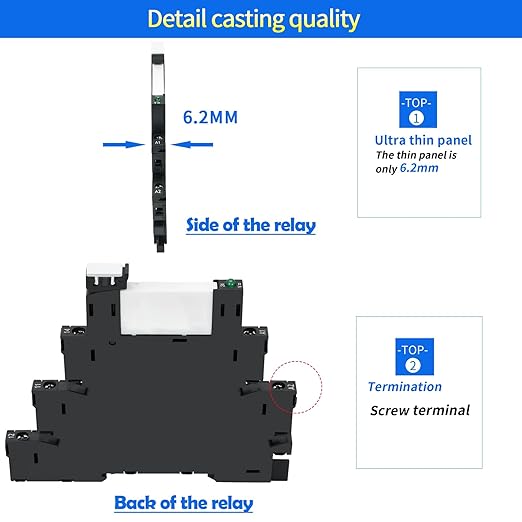

  • 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
  • 【Electromechanical Relays】Relay Coil Voltage: 24V AC/DC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin. Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

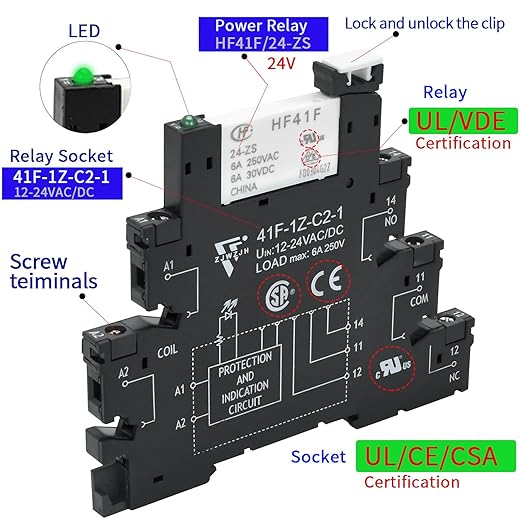

  • 【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Apply to relay the rated voltage: (12~24)V DC; Input voltage polarity: NO.

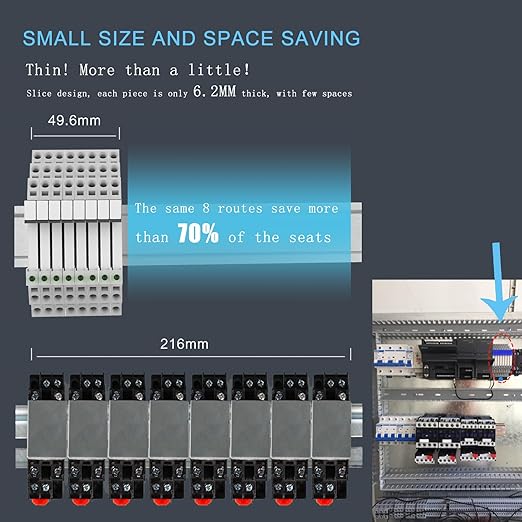

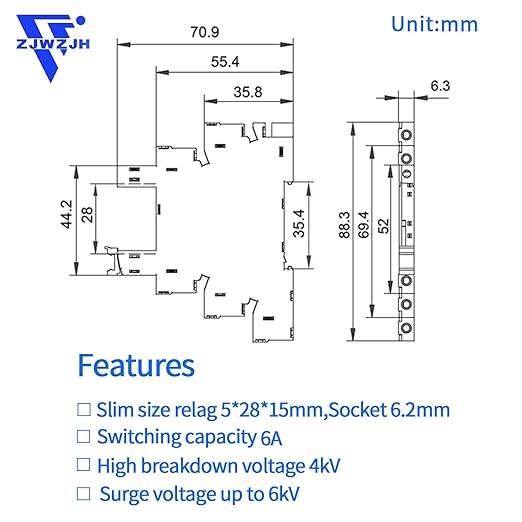

  • 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

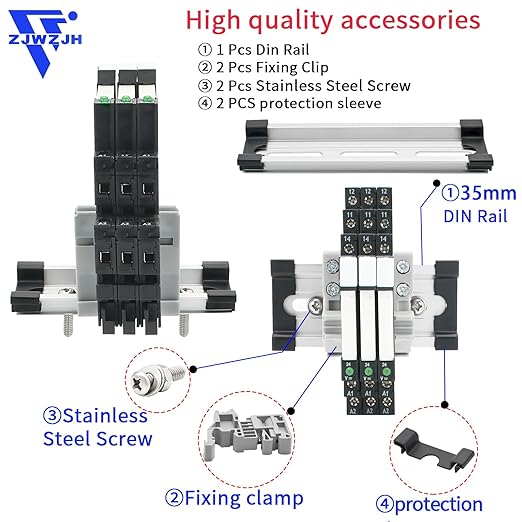

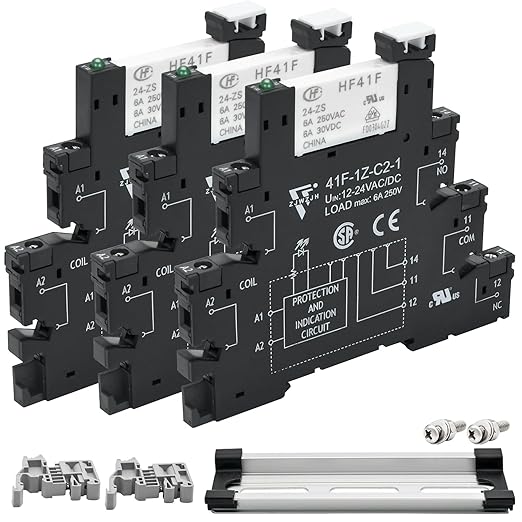

  • 【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.

Overview

  • Connector Type : Screw
  • Contact Material : Silver Tin Oxide, Silver Nickel
  • Contact Type : Spdt
  • Current Rating : 6 Amps
  • Mounting Type : DIN Rail Mount
