Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)

Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)

$34.63
Skip to product information
Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
1/8
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
  • Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)
Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)

Good BNTai 8 Channel Interface Relay Module 12VACDC 24VACDC 110VAC 230VAC DIN Rail Panel Mount Automation PLC Board (8Channel ACDC12V)

$34.63
Shipping calculated at checkout.
Description

About This

  • 1. DIN Rail optional 8 channels relay interface modules.
  • 2. Switching current upto 10A at 250VAC or 30VDC.

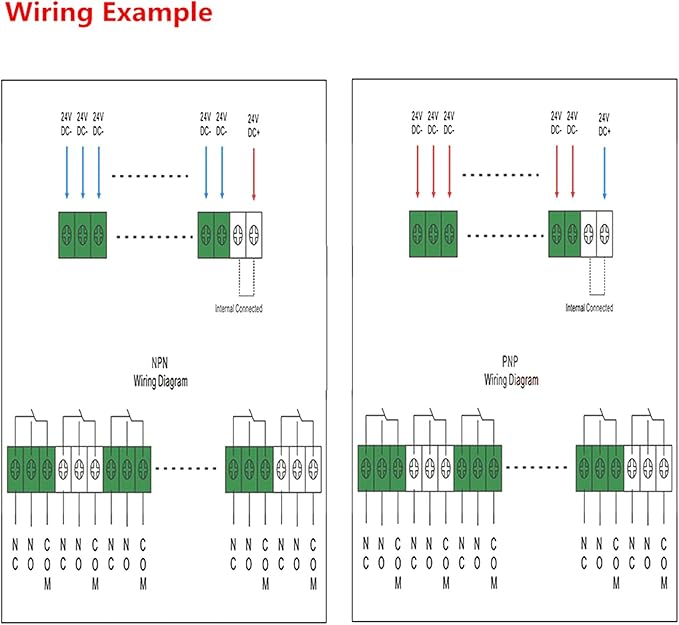

  • 3. Input connections by screw terminal block.NPN&PNP in common use, AC&DC in common use.
  • 4. Relay status indicator LED,surge suppression protection and overvoltage protection are provided for each relay channel.

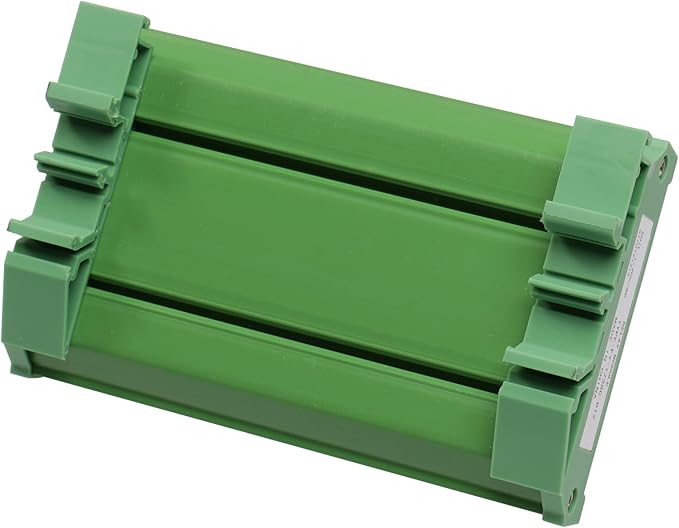

  • 5. DIN Rail mountable for width TS15/28/35

Overview

  • Connector Type : Screw
  • Contact Material : Silver
  • Contact Type : Normally Open
  • Current Rating : 10 Amps
  • Mounting Type : DIN Rail Mount, Panel Mount
