Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light, Test Button and Socket Base UL Certification (8 Pin- 8A, DC 12V)
$16.48
Shipping calculated at checkout.
Description
About This
- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

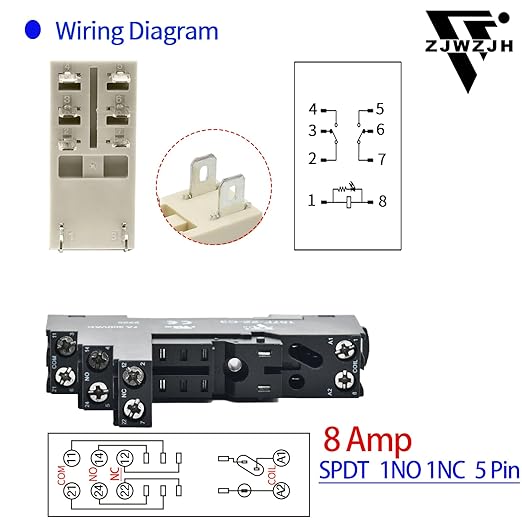

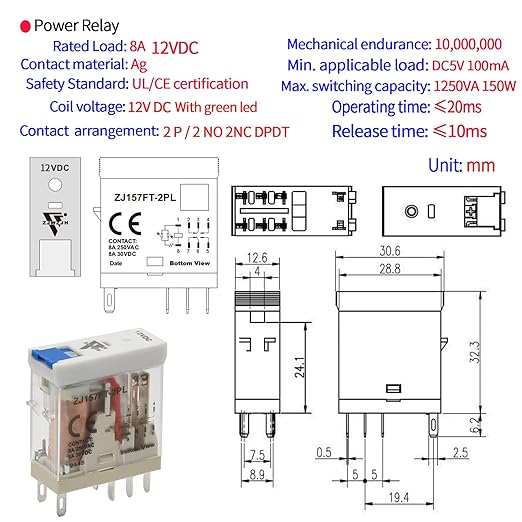

- Coil Voltage: 12VDC, Coil Resistance: 1100 Ω.Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO2NC DPDT 2 Poles.

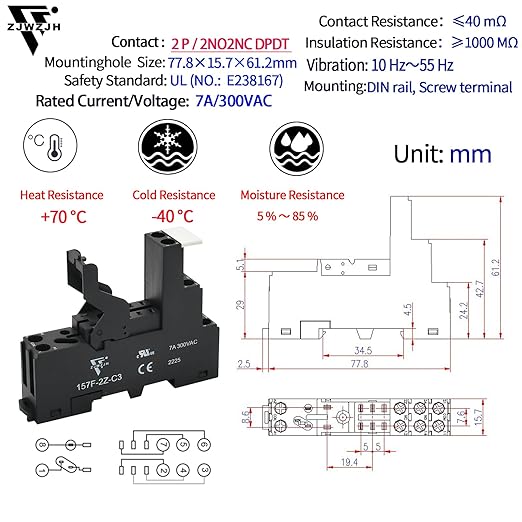

- Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

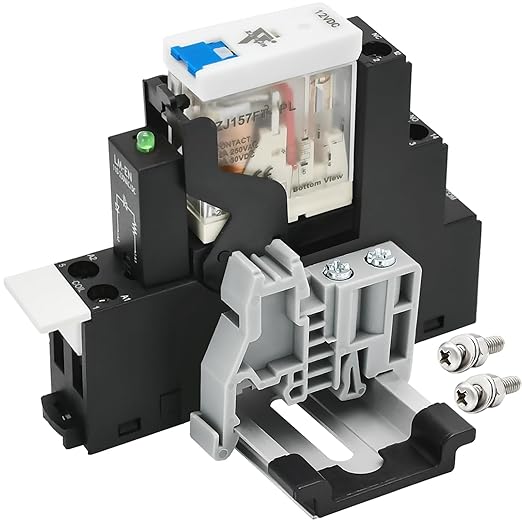

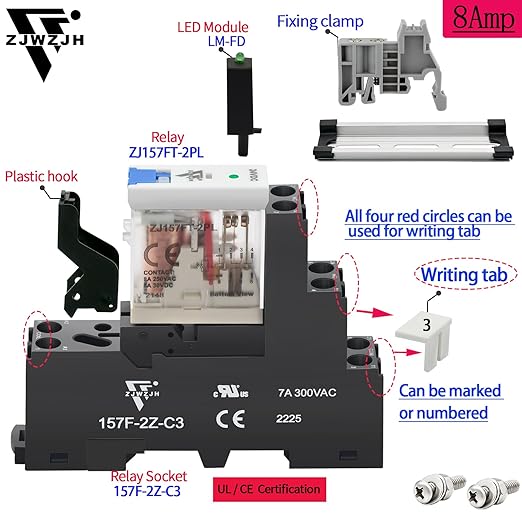

- Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

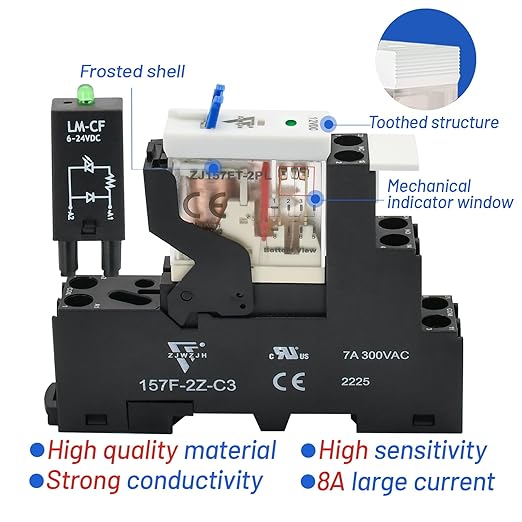

- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Overview
- Connector Type : Screw
- Contact Material : Silver
- Contact Type : Normally Open
- Current Rating : 8 Amps
- Mounting Type : Screw Mount
