12Amp Power Relay Switch with Test Button SPDT 1NO 1NC with LED Indicator Light and Socket Base UL Certification (5 Pin- 12A, DC 24V)
$16.48
Skip to product information
12Amp Power Relay Switch with Test Button SPDT 1NO 1NC with LED Indicator Light and Socket Base UL Certification (5 Pin- 12A, DC 24V)
$16.48
Shipping calculated at checkout.
Description
About This

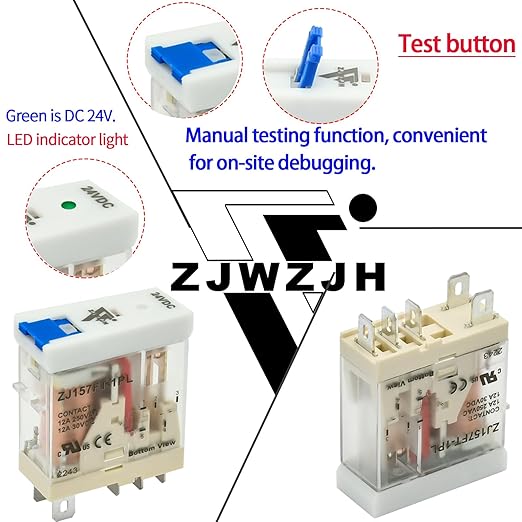

- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

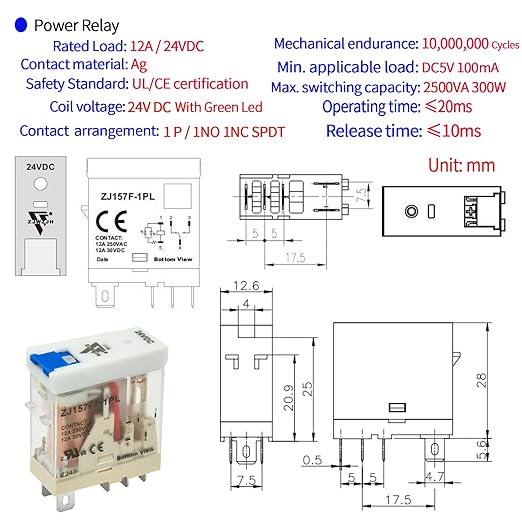

- Relay Name:ZJ157FT-1PL; Rated carry current:12 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:1NO1NC DPDT 1 Poles.

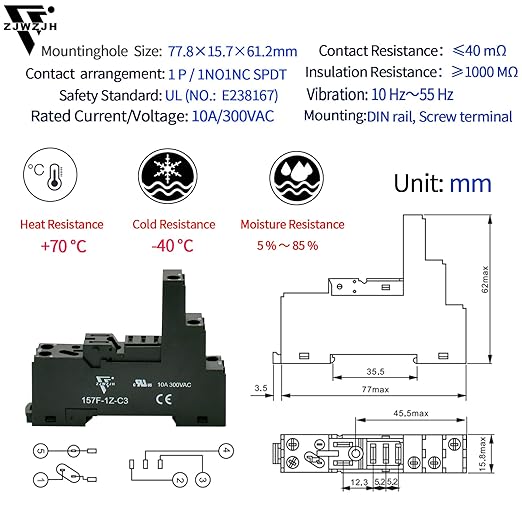

- Socket: UL/CE/CSA certification, with LED lamp sockets installed on the socket for safer illumination during use.

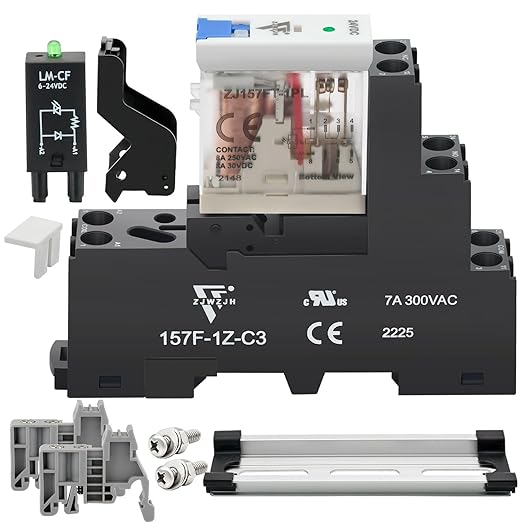

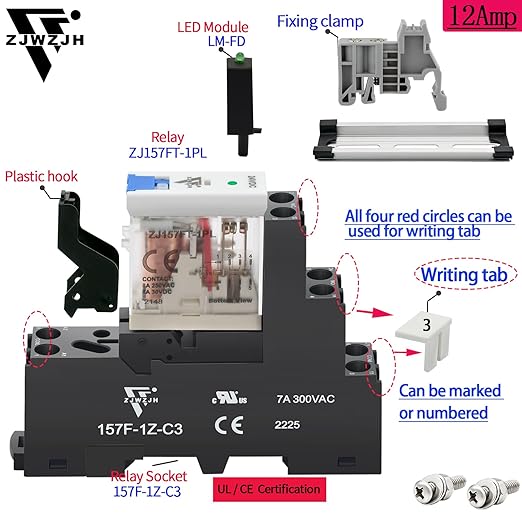

- Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp, 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Overview
- Connector Type : Screw
- Contact Material : Silver Alloy
- Contact Type : Spdt
- Current Rating : 12 Amps
- Mounting Type : DIN Rail Mount
