About This

• Our Miniature PCB Power AC 24V Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state. Relays are designed with precision and attention to detail, ensuring high-quality performance in various applications.

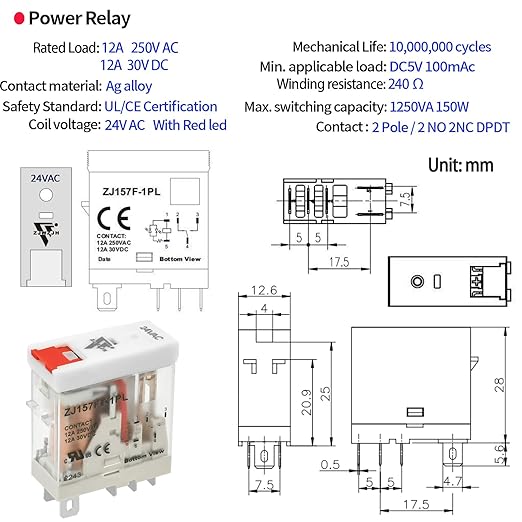

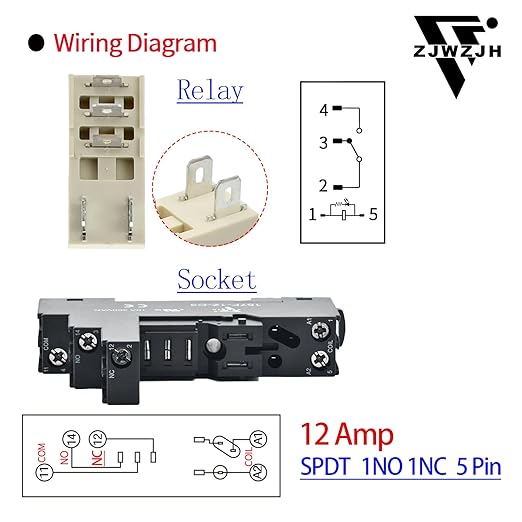

• Relay Name:ZJ157FT-1PL; Rated carry current:12 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:1NO1NC DPDT 1 Poles.

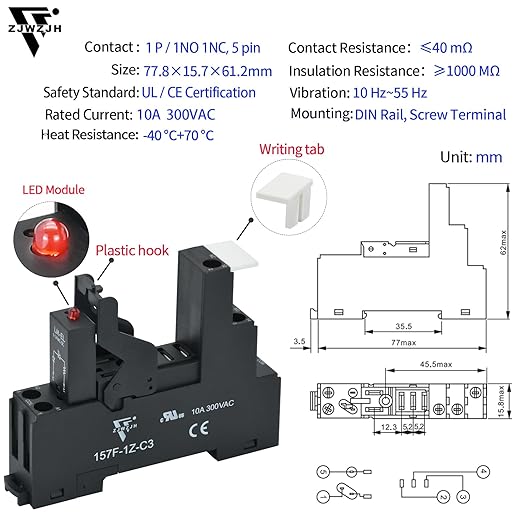

• Socket Safety Standard:UL/CE Certification (NO.: E238167) . An LED high brightness indicator module has been added to the socket for better monitoring of relay operation.; Outline Size: 7.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

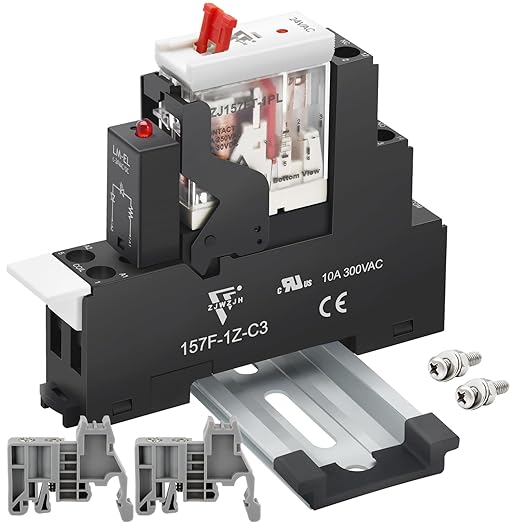

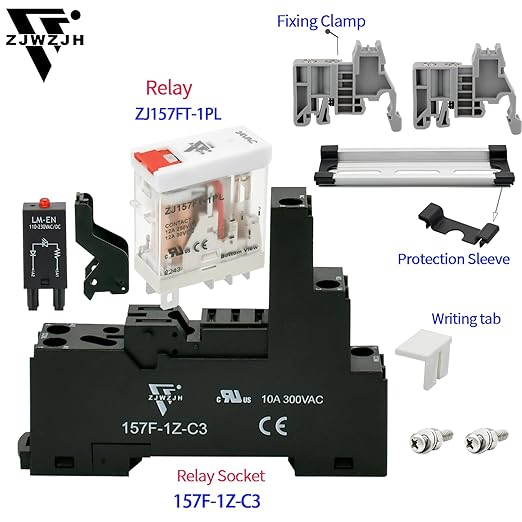

• Package Content : 1 x Power Relay(AC24V),1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

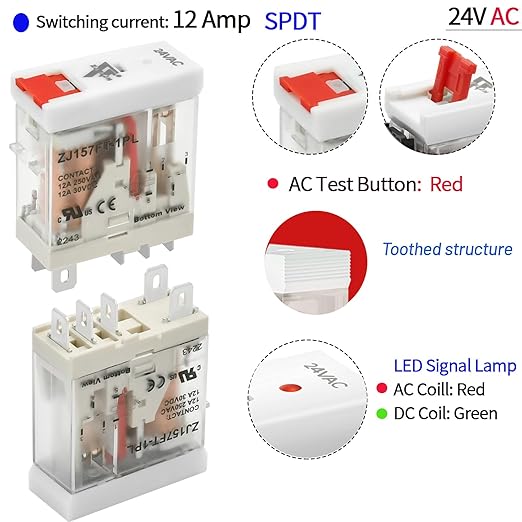

• The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Overview

• Connector Type : Screw
• Contact Material : Silver Alloy
• Contact Type : Normally Open
• Current Rating : 12 Amps
• Mounting Type : DIN Rail Mount
