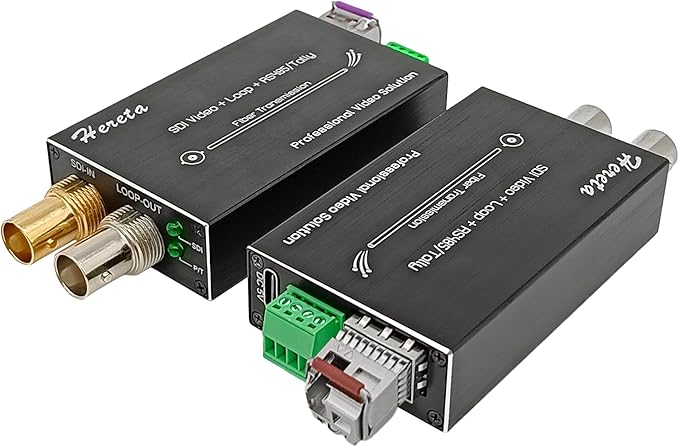

Hereta Mini 3G-SDI Video Extender with SDI Loop Output 1080P 3G-SDI Fiber Converter Extension of Distances Up to 20km Over Single-Mode Optical Transceiver and Tally or Reverse RS485

Hereta Mini 3G-SDI Video Extender with SDI Loop Output 1080P 3G-SDI Fiber Converter Extension of Distances Up to 20km Over Single-Mode Optical Transceiver and Tally or Reverse RS485

$341.70
Shipping calculated at checkout.
Description

About This

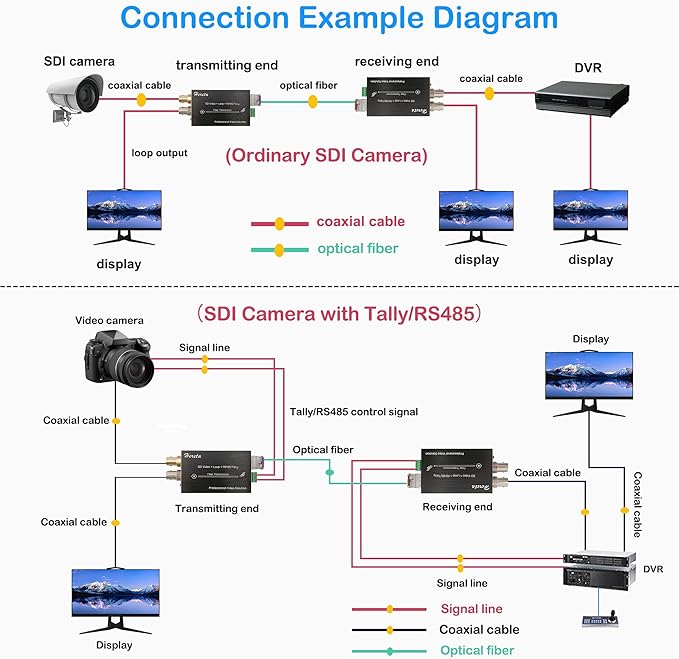

  • 3G-SDI Optical Transceiver supports 1-channel 3G/HD-SDI Video (audio embedded) & Tally and Reverse RS485 signal transmitted via fiber optical cable, and monitor the signal locally over a 3G/HD-SDI loop output

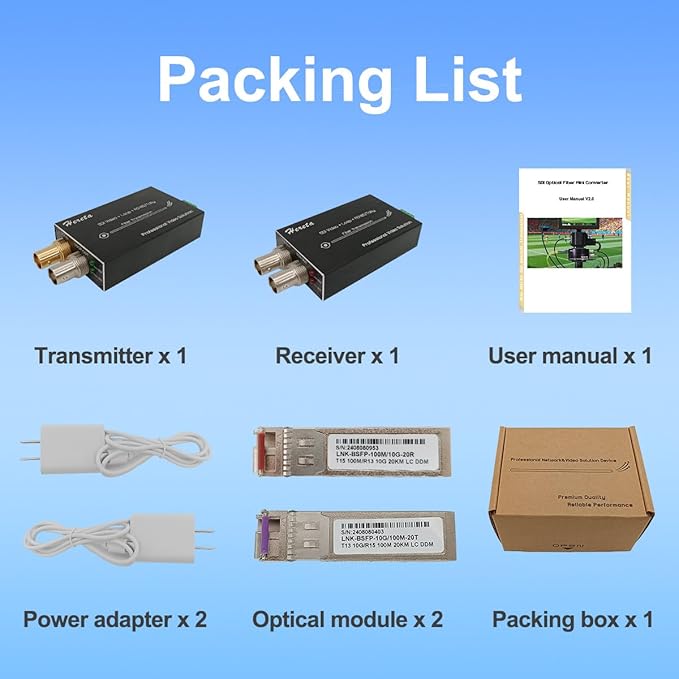

  • HD Fiber Converters includes one transmitter and one receiver for 1080P 3G/HD-SDI signal, transmits video signals up to 20km over a single fiber optic cable
  • Each channel includes 8-channel audio embedded, automatic cable equalization, used for all rate below 3.2 Gb/s (Belden 1694A)
  • SDI Fiber Extender directly compatible with 3G/HD-SDI camera systems, support hot swap and hot plug, LED Status Indication to monitor the working conditions
  • Handle all Pathological patterns, fully digital non-compression broadcast level transmission. Super optic dynamic range and free of adjustment, industry level ultra-broad temperature range (-20℃~+70℃), adaptable to various environments

Overview

  • Compatible Devices : Television
  • Specific Uses For Product : Long-distance video transmission, High performance surveillance, Military monitoring, Stadium Industrial Traffic Security systems, Large wall Live events broadcast, Animal films recording Long-distance video transmission, High performance surveillance, Military monitoring, Stadium Industrial Traffic Security systems, Large wall Live events broadcast, Animal films recording
  • Connector Type : 3G-SDI
  • Color : Black

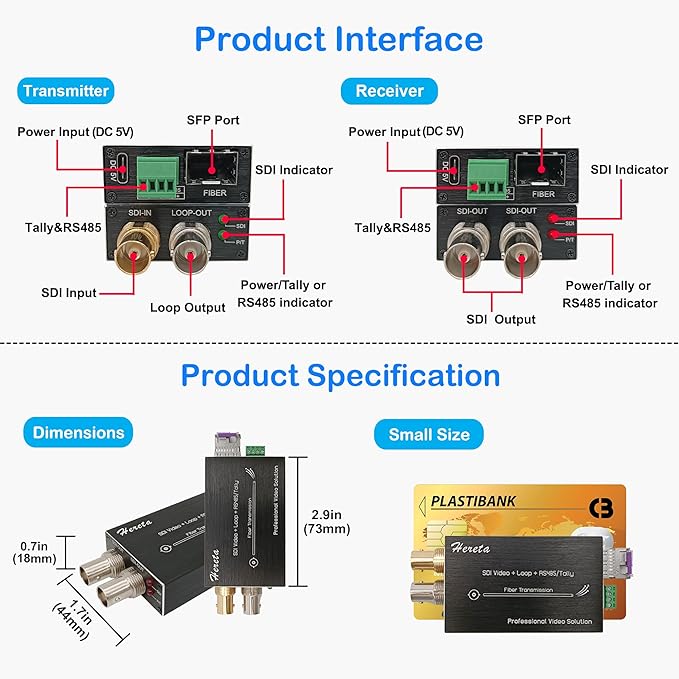

  • Item dimensions L x W x H : 3.1 x 1.6 x 0.9 inches
