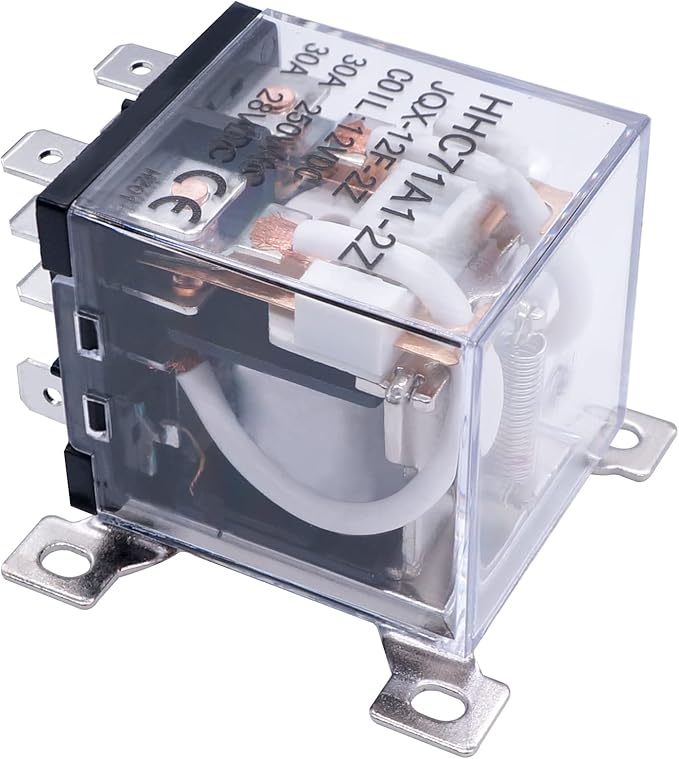

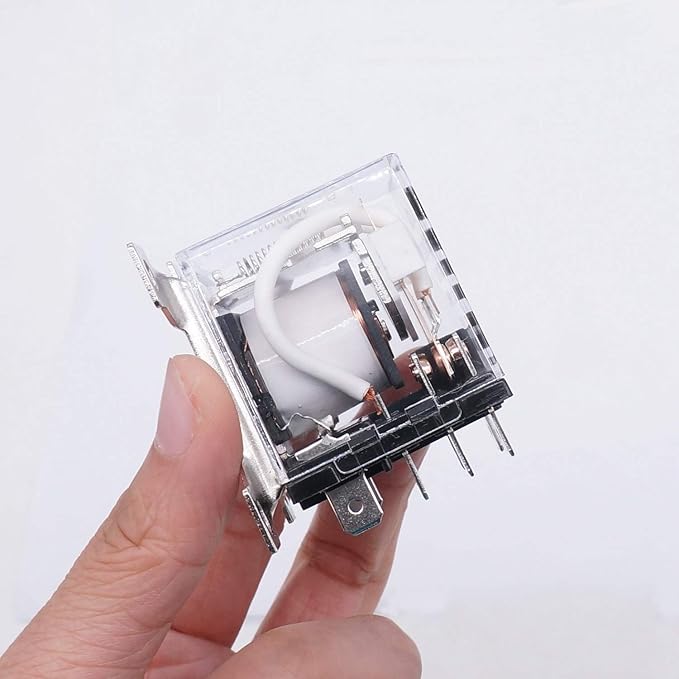

TWTADE/JQX-12F-2Z DC 24V Coil Voltage 30A DPDT 2NO+2NC General Purpose High Power Relay 8 Pin
$28.03
Shipping calculated at checkout.
Description
About This
- Product Name : Power Relay;Model : JQX-12F-2Z; Contact : DPDT 2NO+2NC

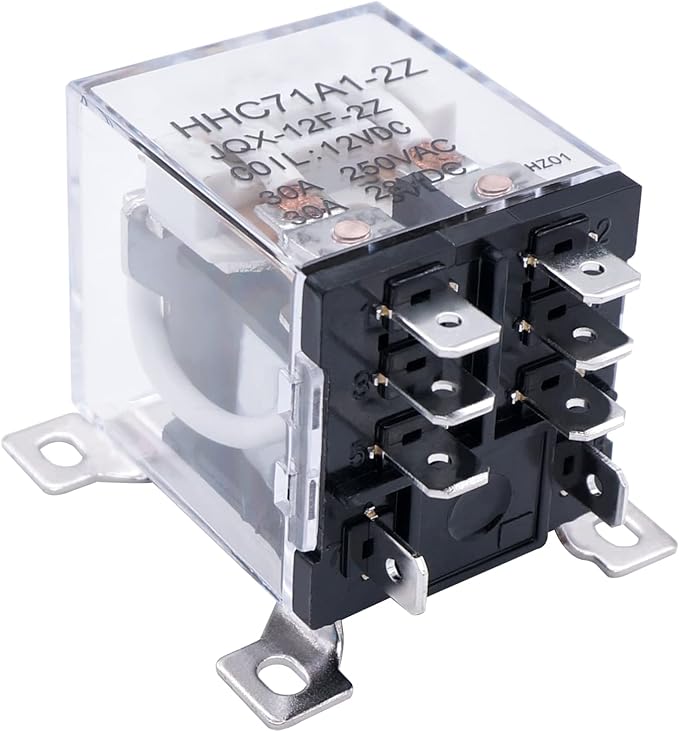

- Wiring description For example: 1,3,5 This contact, 3 and 5 are normally open, 1 and 5 are normally closed;Pin Number : 8; Coil Voltage : DC 24V; Contact : 30A 250V AC / 28V DC
- Body Size(not included pin) : 3.5 x 3.3 x 4cm / 1.4" x 1.3" x 1.6" (L * W * T);Total Height : 4.8cm / 1.6";Installing Hole Size : 0.48 x 0.35cm / 0.19"x 0.14"(L*W)
- Installing Hole Distance(center) : 3.85 x 3.78cm / 1.52" x 1.49"(L*W);Material : Plastic, Metal;Color : See the Picture

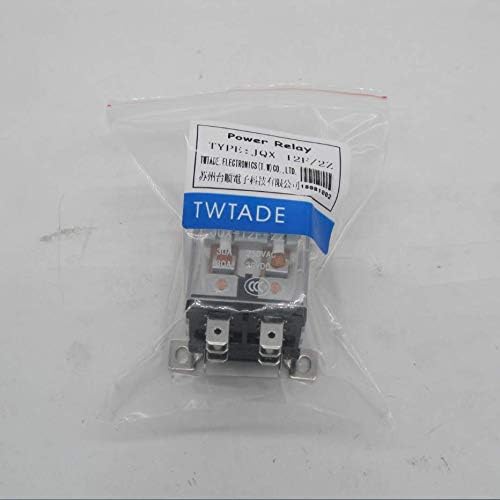

- Weight : 93g;Package Content : 1 x Power Relay
Overview
- Connector Type : Solder
- Contact Material : Silver
- Contact Type : Normally Open, Closed
- Current Rating : 30 Amps

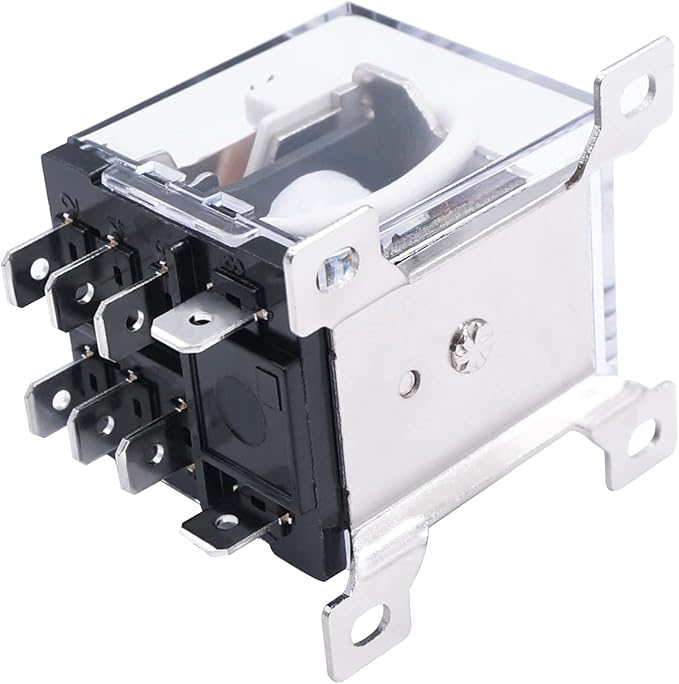

- Mounting Type : Panel Mount
