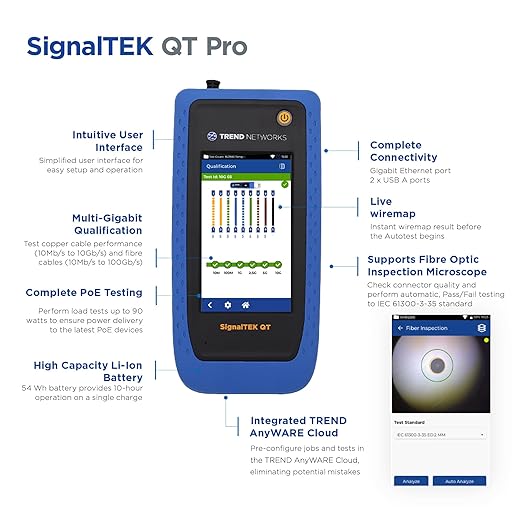

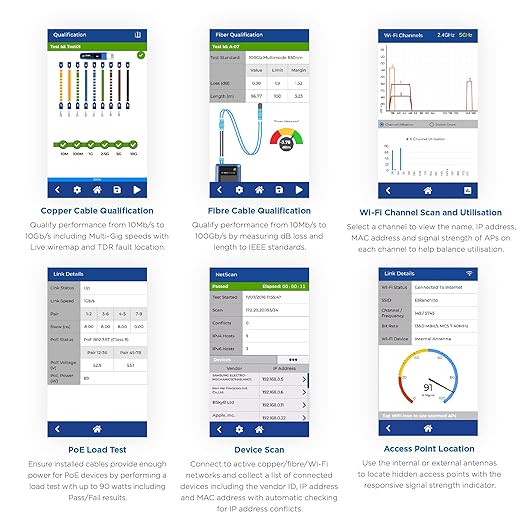

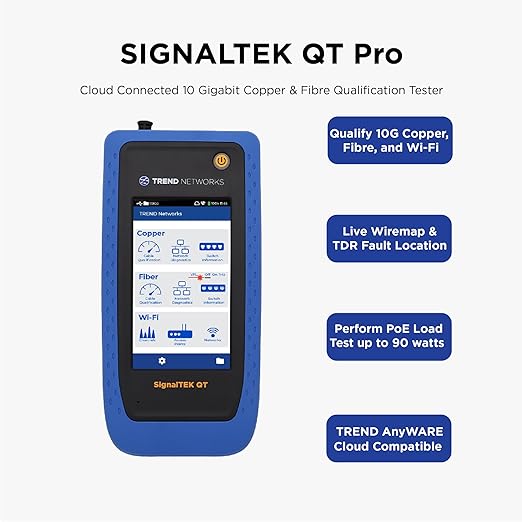

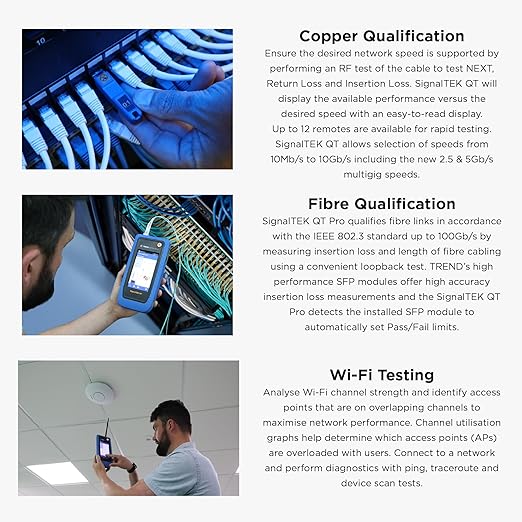

• ALL-IN-ONE NETWORK QUALIFICATION – Test copper up to 10Gb/s, fiber links up to 100Gb/s, and Wi-Fi performance in a single device. Supports Multi-Gigabit speeds with live wiremap and TDR fault location (up to 12 remotes).

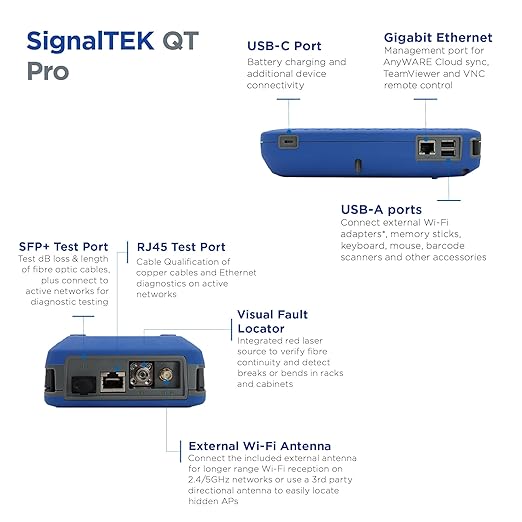

• ADVANCED FIBER TESTING – Measure insertion loss and fiber length with high-accuracy SFP modules, detect faults instantly with the built-in Visual Fault Locator (VFL), and add an optional microscope for automatic Pass/Fail inspection to IEC standards.
• PROFESSIONAL WI-FI DIAGNOSTICS – Conduct site surveys, identify channel conflicts, analyse utilisation, and locate hidden access points. Includes support for internal and external Wi-Fi antennas for enhanced coverage testing.
• COMPREHENSIVE NETWORK & POE TESTING – Verify PoE power delivery up to 90W (802.3 af/at/bt) with clear Pass/Fail results. Built-in tools include ping, traceroute, device discovery, VLAN detection, and switch port identification.
• CLOUD-ENABLED WITH REMOTE ACCESS – TREND AnyWARE Cloud allows job pre-configuration, project management, and secure test result sharing. Remote access via TeamViewer & VNC lets project managers support technicians in real time.

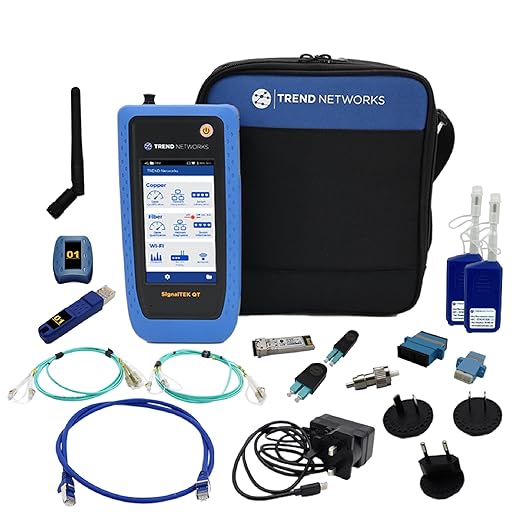

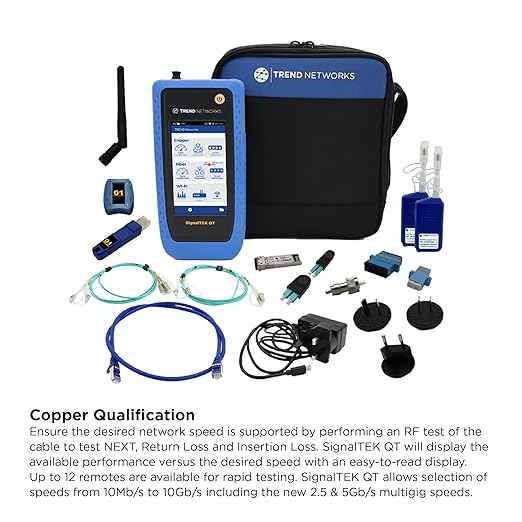

• COMPLETE PROFESSIONAL KIT – SignalTEK QT Pro 10G Copper & Fiber Qualification Tester with Wi-Fi (internal & external antennas), soft carry case, 1x plug (male) copper remote ID #1, 1x socket (female) copper remote ID #1, 1m Cat6A shielded patch cord, 850nm MM high-stability SFP module, LC-LC & LC-SC OM3 MM duplex patch cords, LC & SC multimode fiber loopback remotes, FC-LC adapter for VFL, Duplex SC & LC couplers, 2.5mm & 1.25mm fiber cleaning pens, USB-C charger with changeable plugs.

Overview

• Brand : TREND Networks
• Power Source : Battery Powered
• Style : SignalTEK QT Pro
• Color : Blue & Black
• Specification Met : Iec 61010-1, Iec 61010-2-030, En 61010-1
