About This

• Operating voltage AC 24 to 250V. Maximum total input / output current 15 Amp.

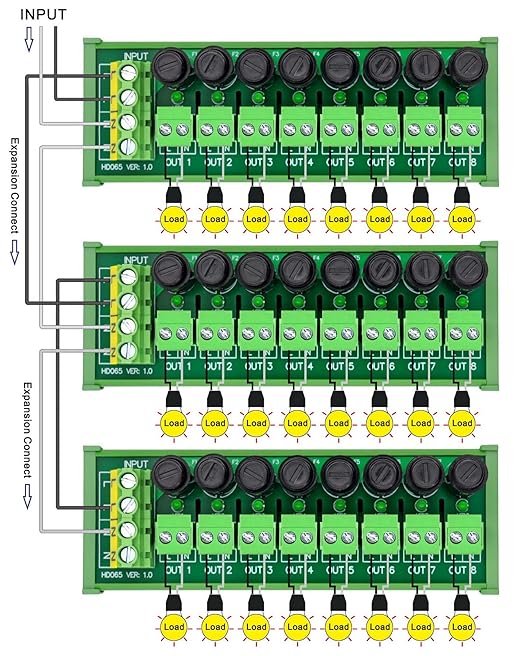

• Input: Maximum current 15 Amp for per position. Double positions L and N polarity terminal, support power supply expansion connect to other modules. Pin pitch 7.62mm/0.3", wire size 26 - 10 AWG, stripping length 8mm, Metric M3 slotted screw.

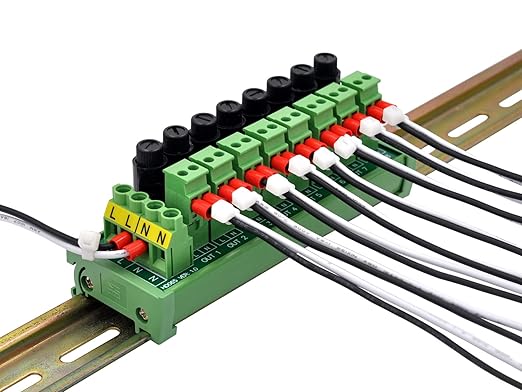

• Output: 10 position pluggable side wiring terminal blocks. Maximum current 4 Amp for per position (factory pre-installed is slow blow 4Amp 5x20mm glass tube fuses). Pin pitch 5.08mm/0.2", wire size 28 - 12 AWG, stripping length 7mm, Metric M2.5 slotted screw.

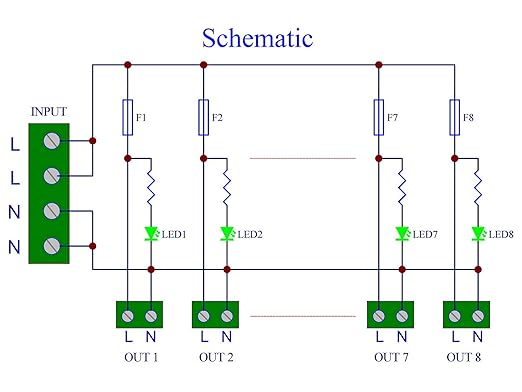

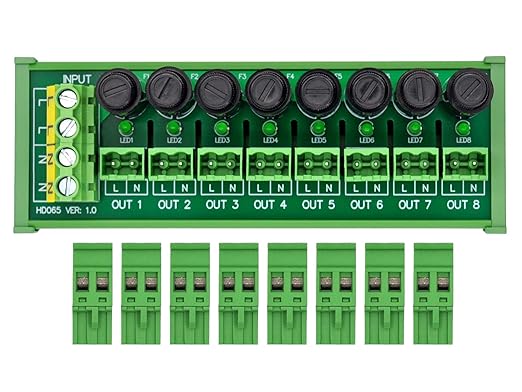

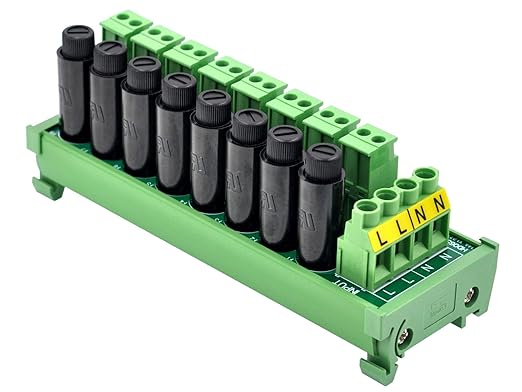

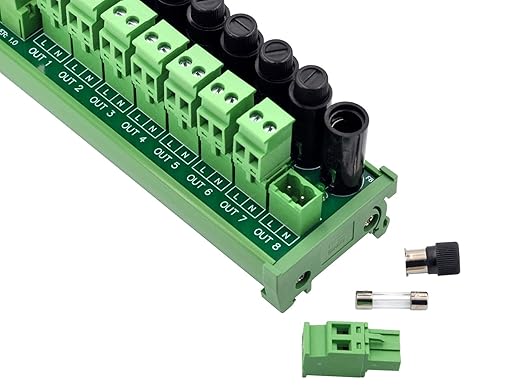

• Fuse holder support 5x20mm tube fuse, the fuse can be replaced very easily. Each output channel has a green LED indicator, when the fuse is blown or pulled out, the LED indicator will be off.

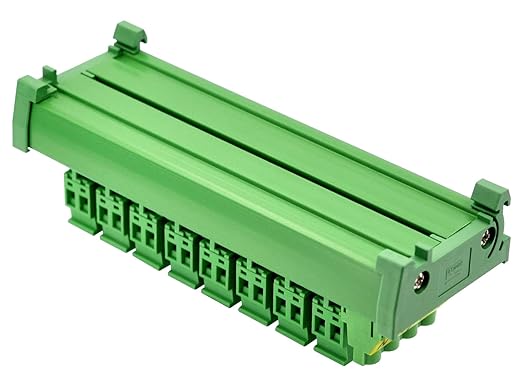

• High quality fireproof nylon material DIN rail mount carrier, can support width 35mm rail. FR-4 fiberglass dual copper layers PCB. UL CE CQC certified terminal blocks, UL 94-V0 certified PCB, and UL CE certified DIN rail mount carrier.

Overview

• Current Rating : 15 Amps
• Item Pitch : 7.62 Millimeters
• Gauge : 10.0
• Connector Type : Screw
• Number Of Contacts : 8
• Mounting Type : DIN Rail Mount
• Material : Nylon
• Brand : HCDC
• Voltage : 250 Volts
• Number Of Poles : 10
