About This

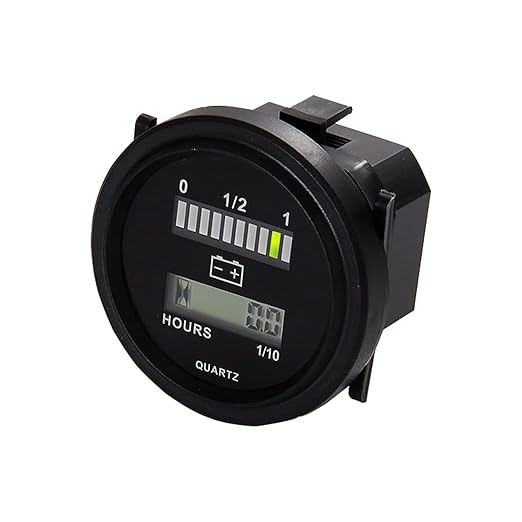

• Digital Multifunctional Meter: This device can be display the battery power left and total running hours by 2 individual channels at the same time, it is widely used on most application area such as garden,forest and agriculture.

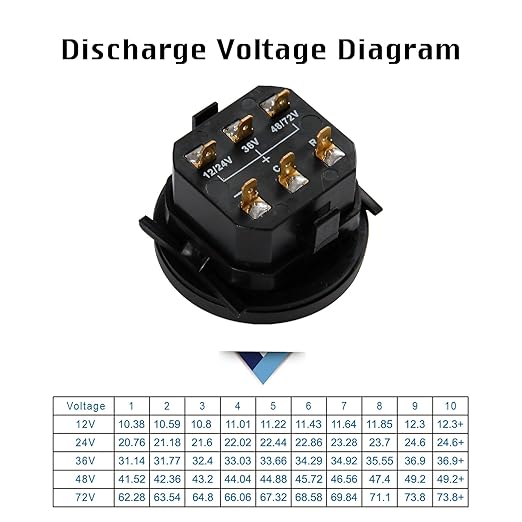

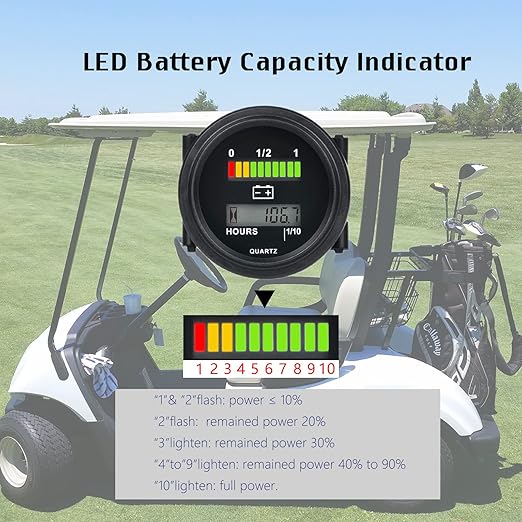

• Battery Power Indicator: There are 3 colors of LED lights to state the battery power status;It have an ability to know how much battery left by charge and discharge voltage,determine when to charge the battery;It is suitable to lead acid battery only.

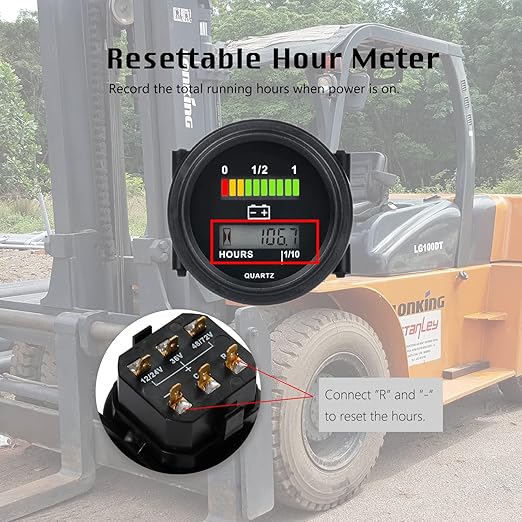

• Total Running Hour Meter: It record the amount of hours for machine maintenance purpose, hours can be reset and read up to 999,99.9 hours.

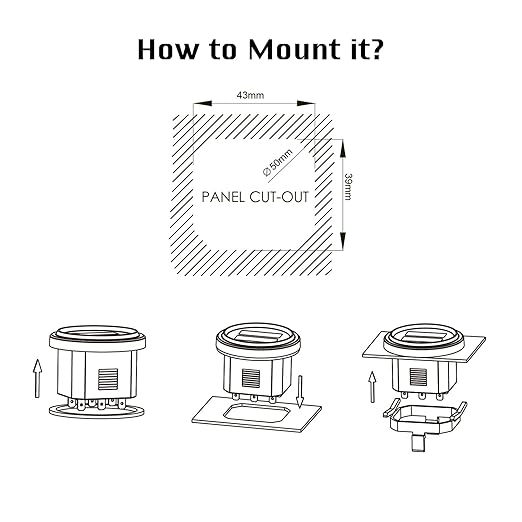

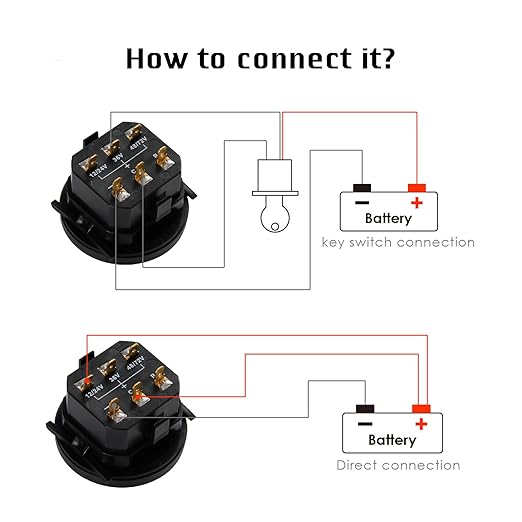

• How to Use: Easy to drill the panel cut-out size 43x39mm,φ50(1.69x 1.54 inches,φ1.96) on proper place of equipment for installation; After link the correct voltage power port,you must not only need connect "positive"and"negative" with battery,but also and important to estabilish another connection to link the "positive"and "C" to keep the real-time battery power level display.

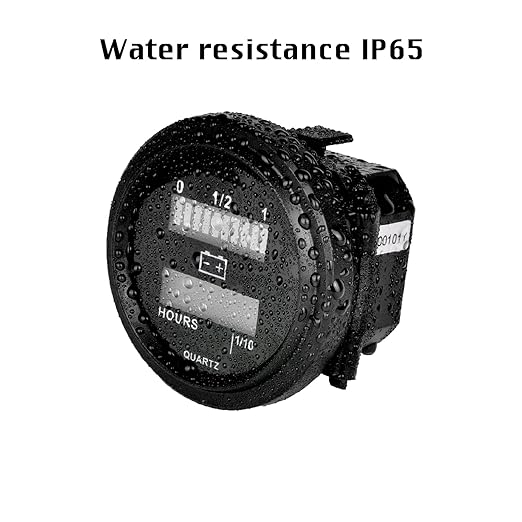

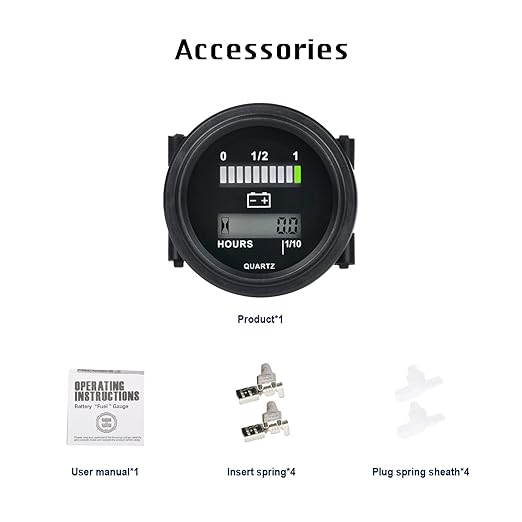

• Others: Favorable waterproof rate;Well-compeleted accessories;Excellent after-sales and technical support(2 years warranty)

Overview

• Brand : HonorMeet
• Power Source : Battery Powered
• Color : Black
• Item dimensions L x W x H : 2.36 x 1.89 x 2.36 inches
• Min. Operating Voltage : 12 Volts
