About This

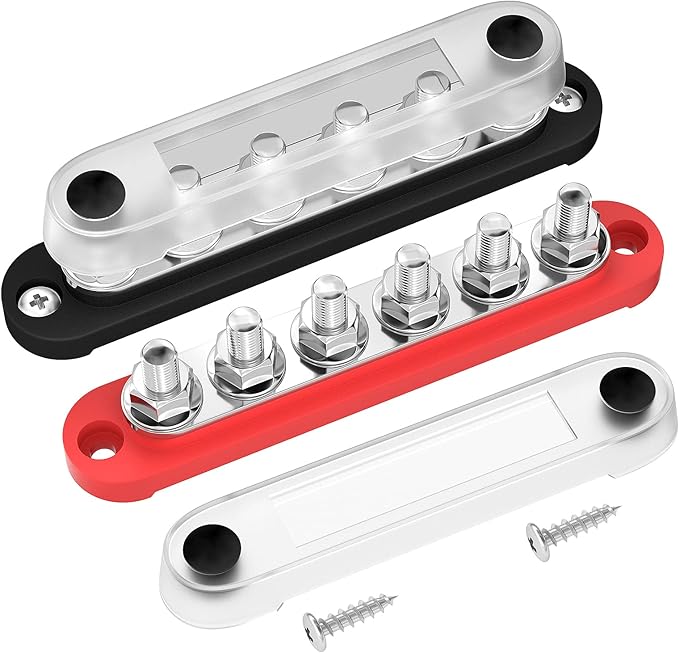

• 【Product Name】- Battery bus bar terminal block, these busbars will come in pairs, include one positive bus bar (red one) and one negative bus bar (black one).

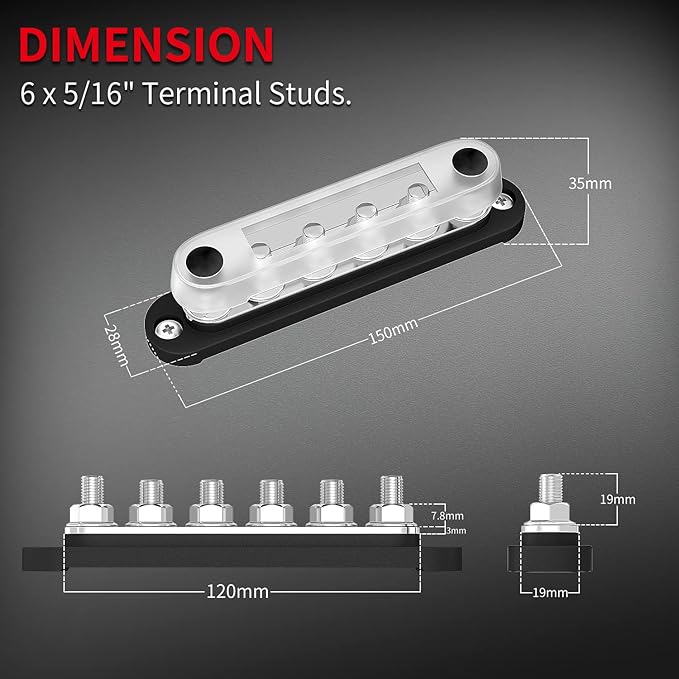

• 【Terminals & Rating】- Each 12v power distribution block includes - 6 x M8 (5/16") terminal studs. This battery distribution block can handle voltage @ Max 300V AC, 48V DC, and continous amperage @ Max 130A AC, 150A DC.

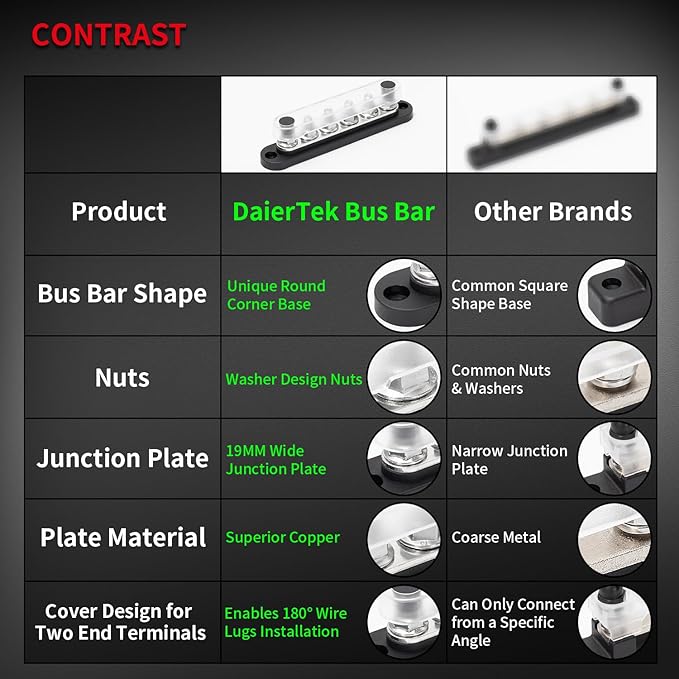

• 【Round Corner Base】 - The 12 volt bus bar is unique round corner base design, which makes the battery terminal block unique and special, looks more extraordinary compared with other busbars.
• 【More Open Area Design Cover】 - The cover of this 12v power block will allow 180° wire lug installation and can meet variety kinds of installat methods of end terminals.

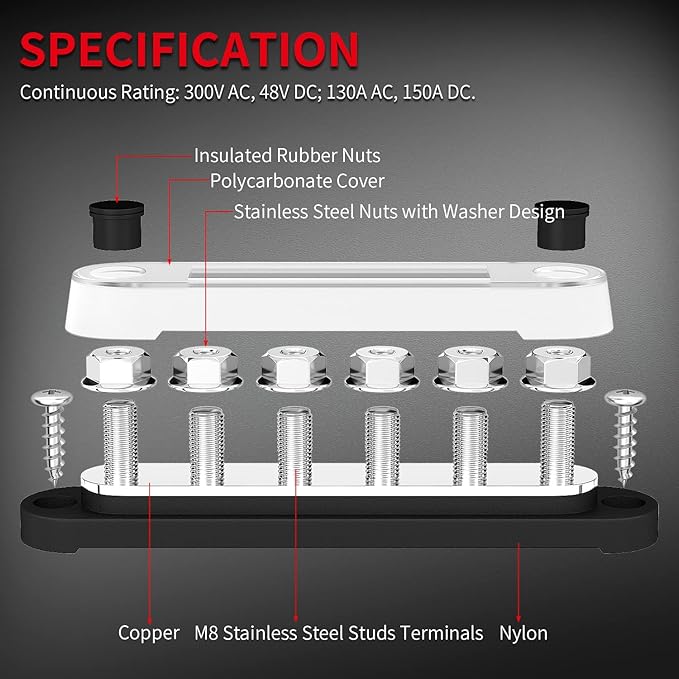

• 【Application】 - This marine power distribution block uses copper plates and stainless steel terminals as conductors, which enables the battery distribution block to work in extreme environment, suitable for automotive, car, marine, boat, etc.

Overview

• Current Rating : 150 Amps
• Item Pitch : 0.31 Inches
• Connector Type : Screw
• Number Of Contacts : 6
• Mounting Type : Rack Mount
• Material : Copper, Stainless Steel
• Color : 150A
• Brand : DAIERTEK
• Voltage : 12 Volts
• Number Of Poles : 6
