TOAUTO Digital Readout 2 Axis 3 Axis DRO Display Linear Scale 700mm 28" Precision 5um for Bridgeport/Knee Milling Lathe EDM Mill Machine
$173.23
Skip to product information
TOAUTO Digital Readout 2 Axis 3 Axis DRO Display Linear Scale 700mm 28" Precision 5um for Bridgeport/Knee Milling Lathe EDM Mill Machine
$173.23
Shipping calculated at checkout.
Description
About This

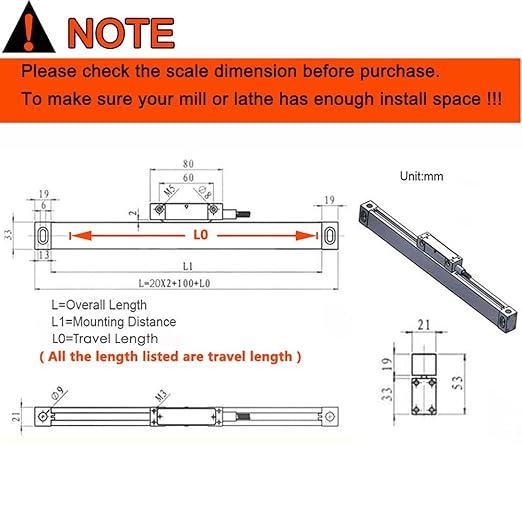

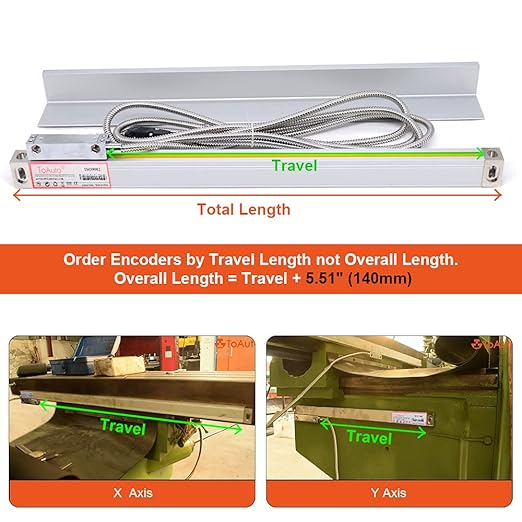

- 【TRAVEL LENGTH】The optical linear scale travel length : 700mm (28") . Total length=travel length+140mm(5.5”) . Travel length ONLY comes in 50mm increment ( 50/100/150....1000MM) . Note : You will only receive 1pc 700mm Linear Scale when you select this option.
- 【HIGH PERFORMANCE】Measurement accuracy of the linear sensor can be accurate to 5 micron(0.005mm / 0.0002") to reduce working errors.

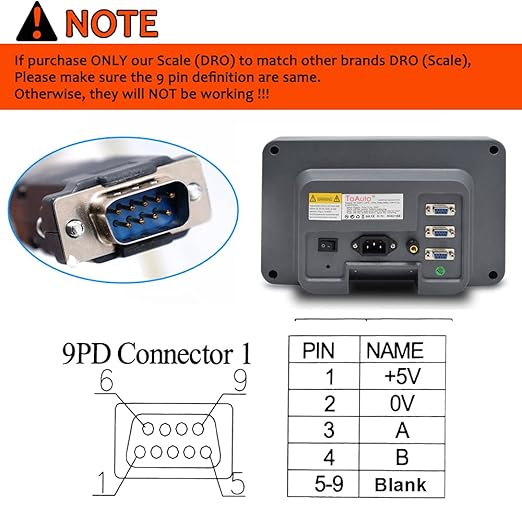

- 【INTERFACE&SIGNAL CABLE】TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection.

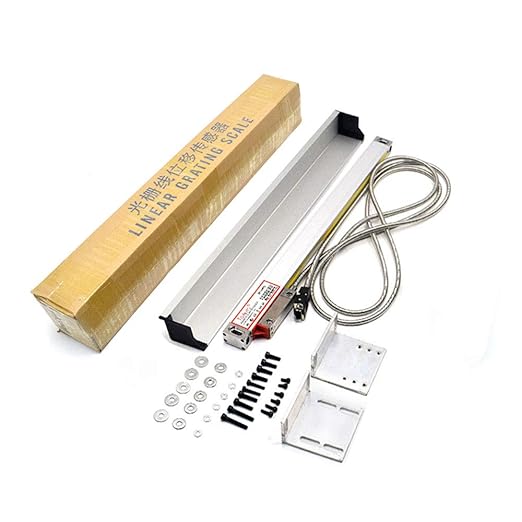

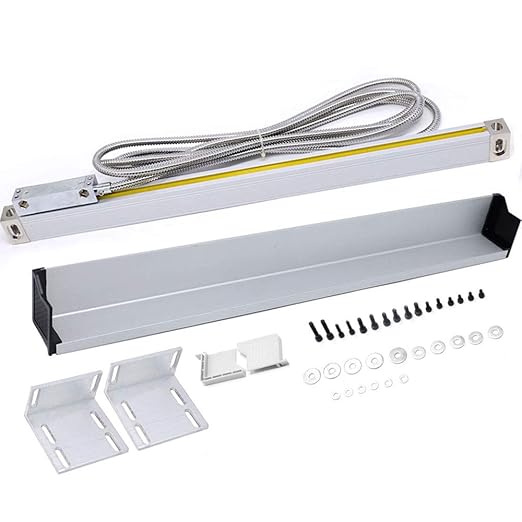

- 【FULL MOUNTING KIT】The package include 1pc 200mm linear scale , 1pc L type mounting plate, 1pc scale cover and some screws, easy installation.
- All Products will be provided for lifetime technical support
Overview
- Brand : TOAUTO
- Material : Alloy Steel, Metal
- Measurement Accuracy : 5UM
- UPC : 191673166237
- Manufacturer : TOAUTO
