About This

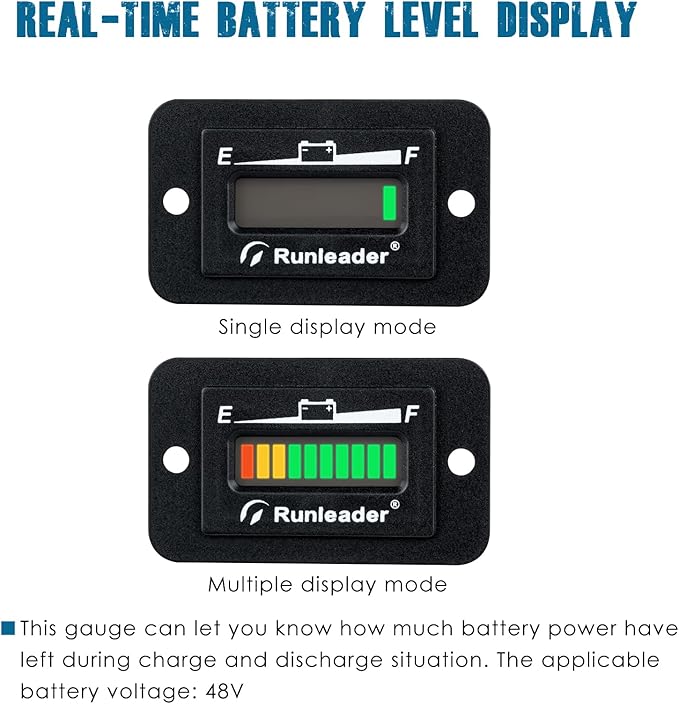

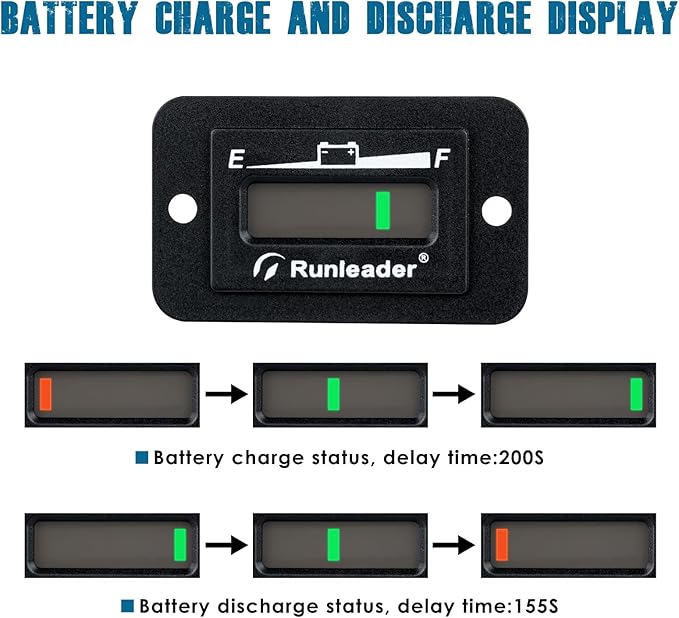

• LED BARS DISPLAY ---- There are 3 colors(1 red, 2 yellows and 7 greens) for 10 LED bars with 10% capacity per each; 2 display methods for remain battery capacity: single display(only lighten the related bar),multiple display(lighten from first bar to the related bar);The change of charge/discharge status by always on,shut-down or flashes.

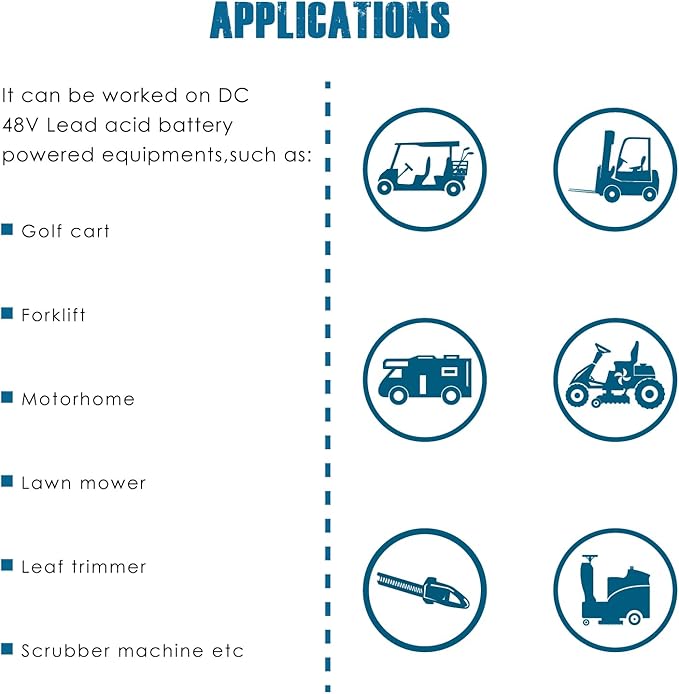

• BATTERY LEVEL METER ---- What should be noticed that this device is only suitable for lead acid battery powered equipment but not Trojian's; It help you to know the charge time by how much battery power left (related voltage discharge percentage).

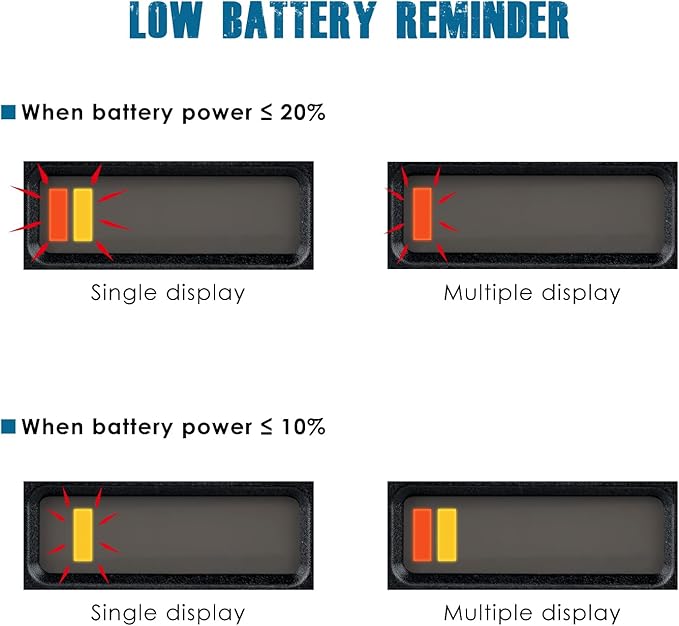

• VOLTAGE OUTPUT ---- It can give a signal to external equipment by voltage output as a new function such as low battery reminder; Voltage output range: capacity lower than 10%,output 0V;capacity higher than 10%,output 5V.

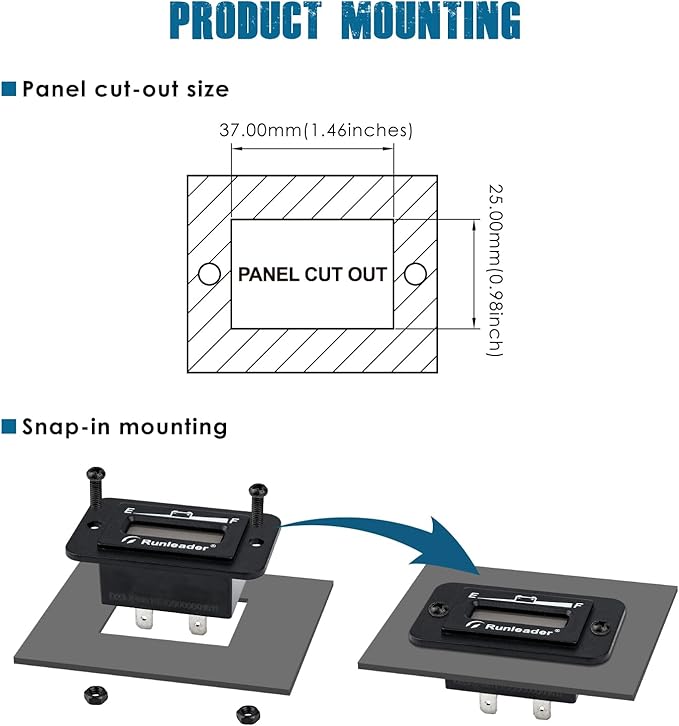

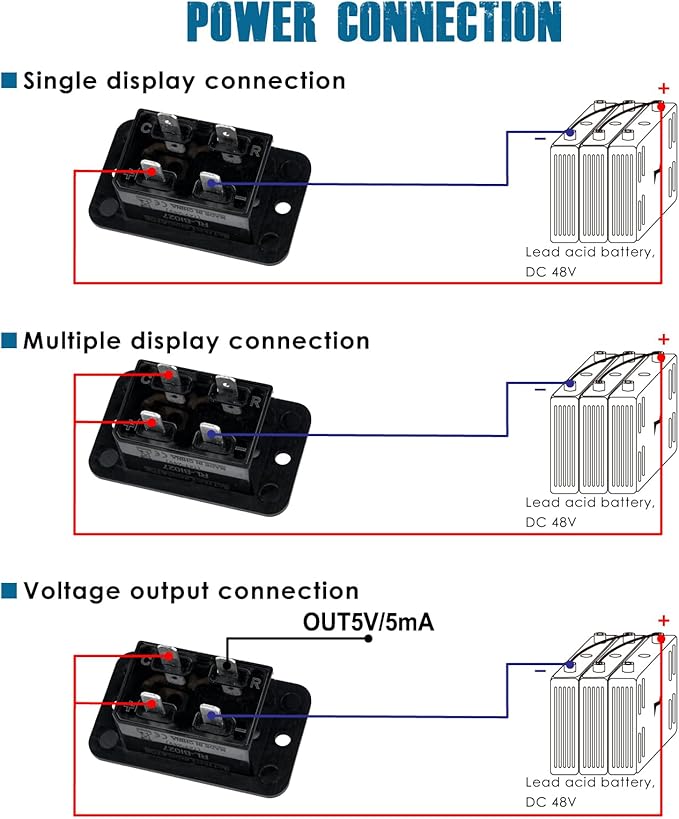

• HOW TO INSTALL ---- You can drill an accurate panel cut-out size 37x25mm(1.5x 1inches) on proper place of equipment for installation; 2 power connection diagrams to be chosen: direct & key switch, user must connect the "C" pin with positive(+) pin to keep the indicator getting an normal real-time battery power left.

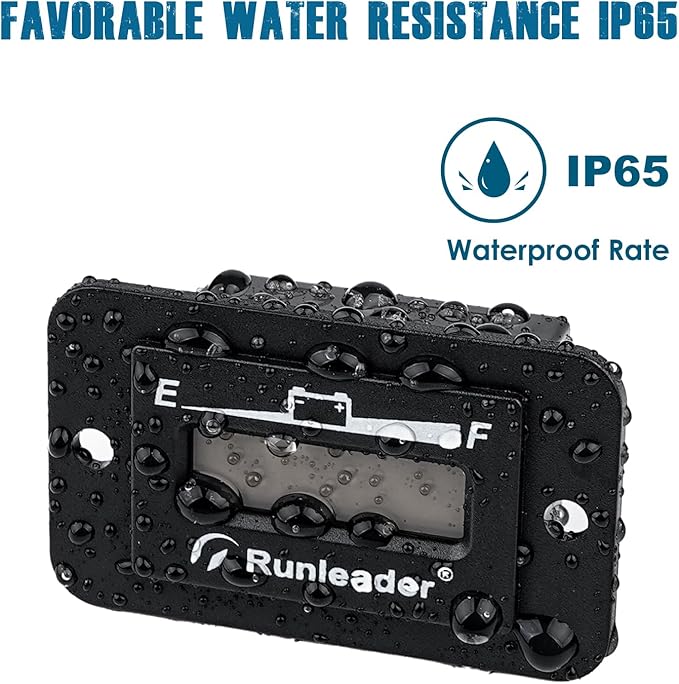

• OTHER ----Favorable waterproof rate(Surface waterproof IP65);Well-compeleted accessories;Excellent after-sales and technical support(2 years warranty)

Overview

• Brand : Runleader
• Power Source : Battery Powered
• Style : Go-kart
• Color : Red
• Item Weight : 36 Grams
