About This

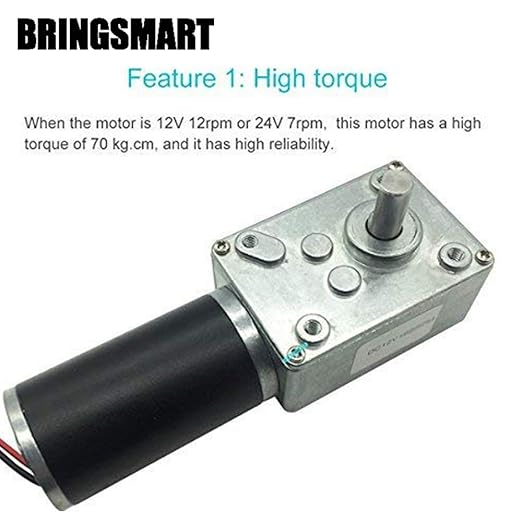

• Rated voltage-24V DC, No load speed-470rpm, no load current-200mA, Rated speed-380rpm, rated torque-3.4kg.cm, rated current-1.6A, Reducer ratio-1:17

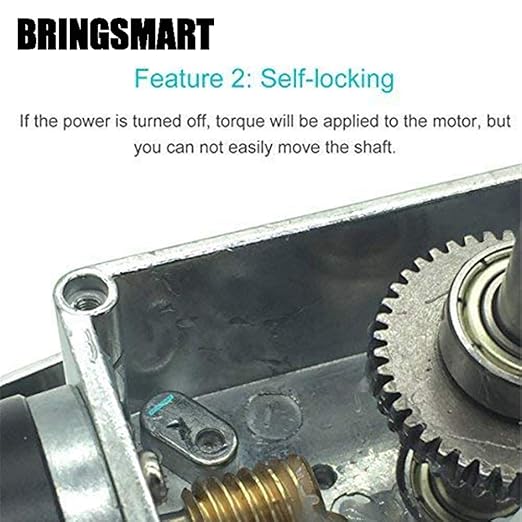

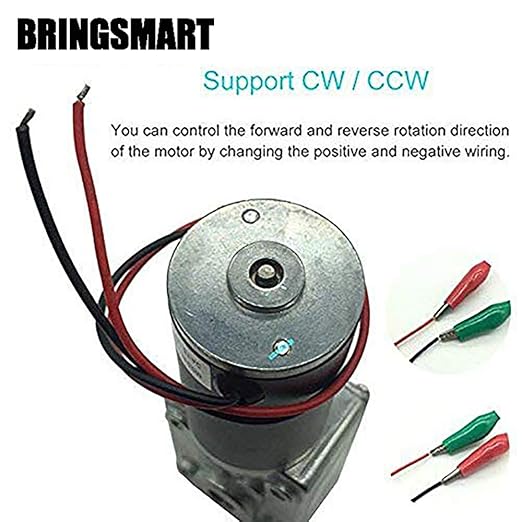

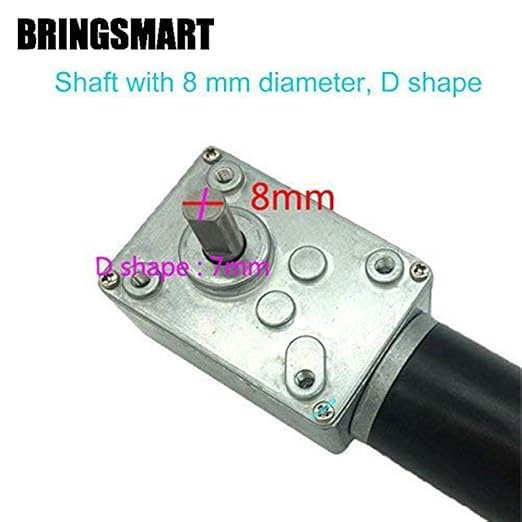

• Feature: Output Shaft Diameter: 8mm; The motor is Gear DC motor with micro-turbine worm, you can change the wiring-connection to change motor rotation. -Turbo worm geared motor with self-lock, that is, in the case of motor without electric, the output axis is fixed, self-lock. -The reducer output shaft arranged vertically with the motor shaft, whole motor output

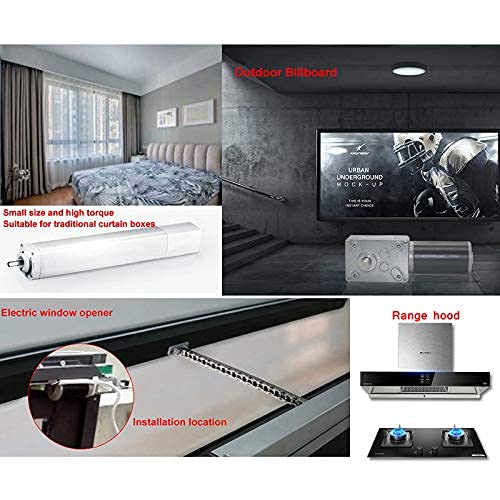

• Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine,electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner.
• What You Get: 1pcs x DC Geared Motor; if you need other voltage and rpm, pls contact us, there are many other models of this motor in store.
• Quality Guarantee: If you have any question about the motor, please feel free to contact us. We will try to provide a solution for you.

Overview

• Brand : BRINGSMART
• Model Name : gear
• Speed : 470 RPM
• Voltage : 24 Volts
• Material : Paper
