DAE P304-200 KIT Multi-Function Smart Submeter 3 Phase, 200A, 120/208v, 3 Split CTs, RS485, Demand
$1,236.11
Skip to product information
DAE P304-200 KIT Multi-Function Smart Submeter 3 Phase, 200A, 120/208v, 3 Split CTs, RS485, Demand
$1,236.11
Shipping calculated at checkout.
Description
About This

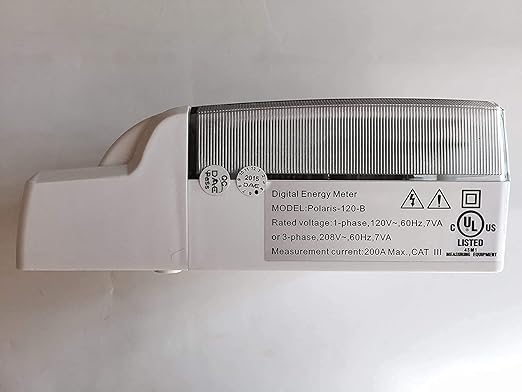

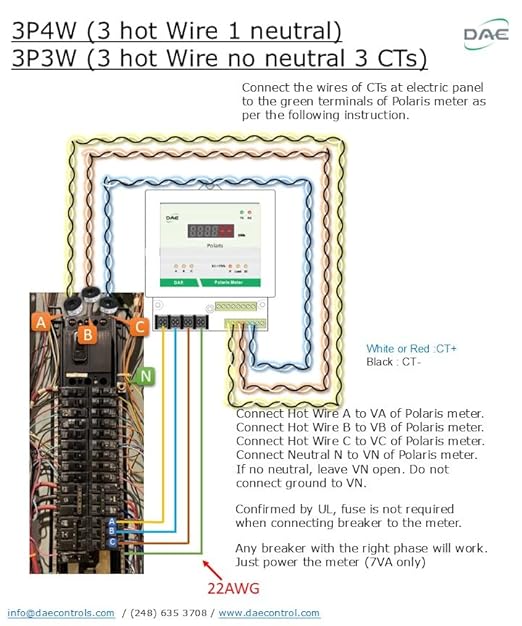

- UL/cUL Listed, Conform to ANSI C12.1 national accuracy standards. Comes with a lower cover which has two 3/4" knockouts to connect the conduits. One in-inline fuse with holder is attached for you to connect hot wire A to VA of the meter.The meter is powered by VA and VB. VC just takes reference of voltage from hot wire C and does not need fuse. Please connect the wiring as per 5th picture.

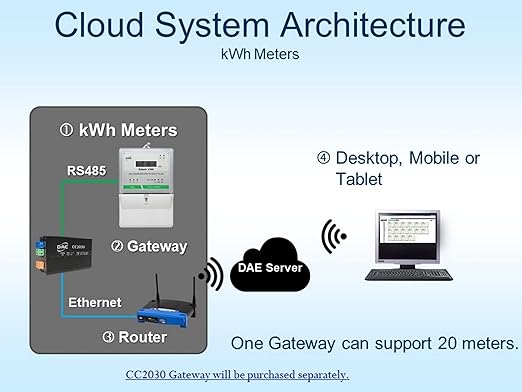

- DAE Cloud Metering (2nd picture) available with DAE CC2030 Gateway. DAE CC2030 gateway will get the energy data from DAE electrical meters and send them to the cloud (DAE server) through Ethernet. With PC, cell phone or tablet, the building owners or property managers will therefore be able to get access to real time data as well as the monthly kWh consumption and billing reports to their tenants. TOU (Time of Use) billing reports are also available.

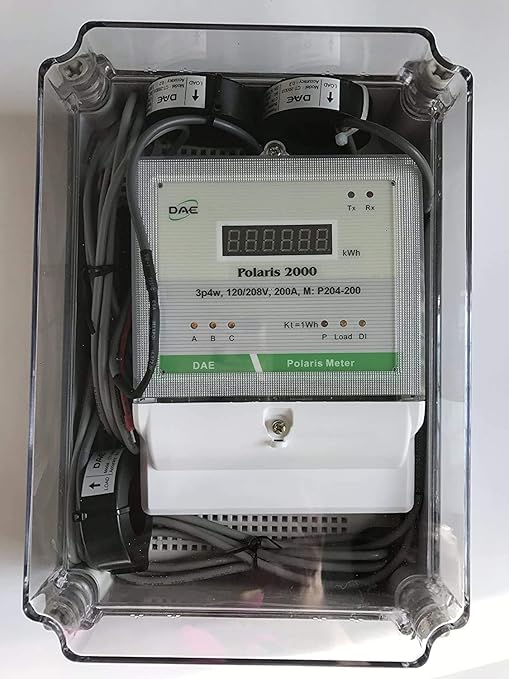

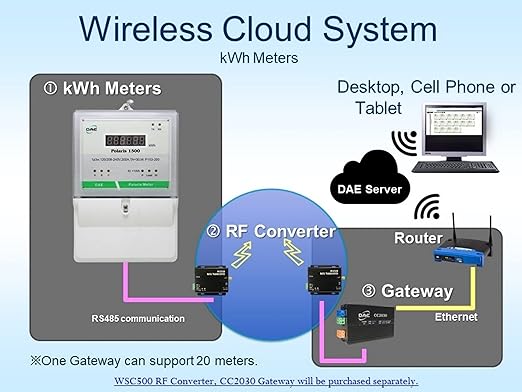

- For existing building, hard to draw cable between electric meter (close to electric panel) and CC2030 (close to your router), please choose 1 CC2030 KIT + 2 WSC500A RF Converters to connect electric meter and CC2030 wirelessly (3rd picture). Indoor use only, DAE B1725 watertight enclosure is available for outdoor use (4th picture).
- Factory Calibration Certificates available. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Following CTs are available with the meter. Split Core CTs DAE CT-5000SB (5000A), CT-3000SB (3000A), CT-2000SB (2000A), CT-1500SB (1500A), CT-1000SB (1000A), CT-600S (600A), CT-400S (400A), CT-200SB (200A), CT-100S (100A) and Solid Core CT-600D9 (600A), CT-400D6 (400A), CT-200D3 (200A).

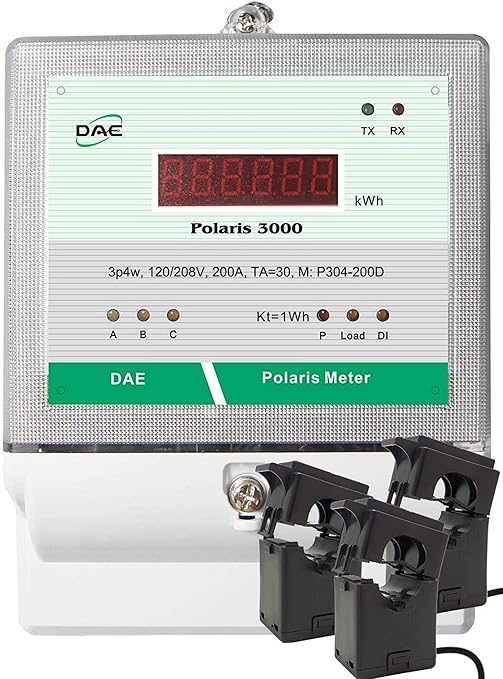

- Multi-function Smart Submeter, Polaris 3000, 3 phase, 4 wire (3 hot wire, 1 neutral), 200 amp, 120/208 volt, with 3 Split Cores Current Transformers (inner diameter 0.94 inch), Modbus rtu/rs485 communications, with display of kWh, kW, voltage, current, kVArh, PF, demand. 1000 pulses per kwh. For monitoring up to 8 electric panels remotely with cell phone, PC and generate billing reports, you will just need 1 SMB350-UL-8-B KIT + 1 CC2030 KIT.
